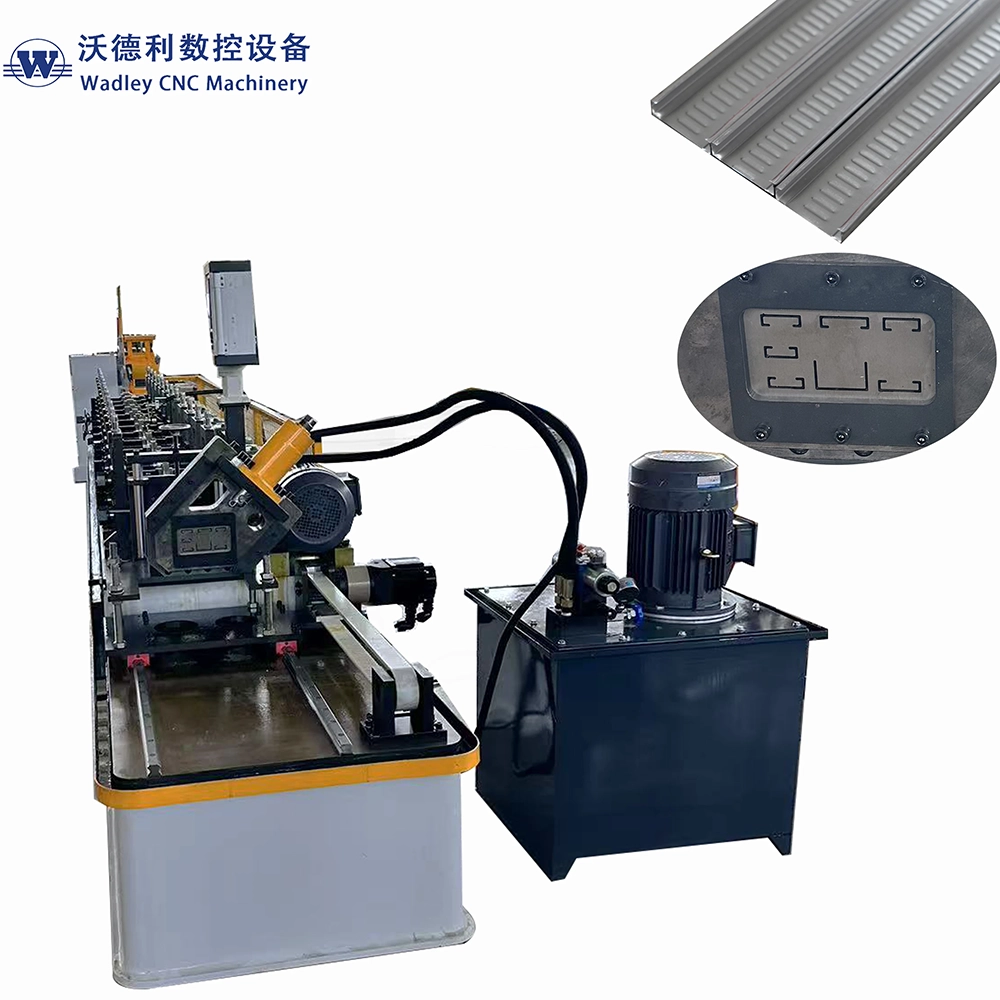

13 in 1 CU Purlin Roll Forming Machine

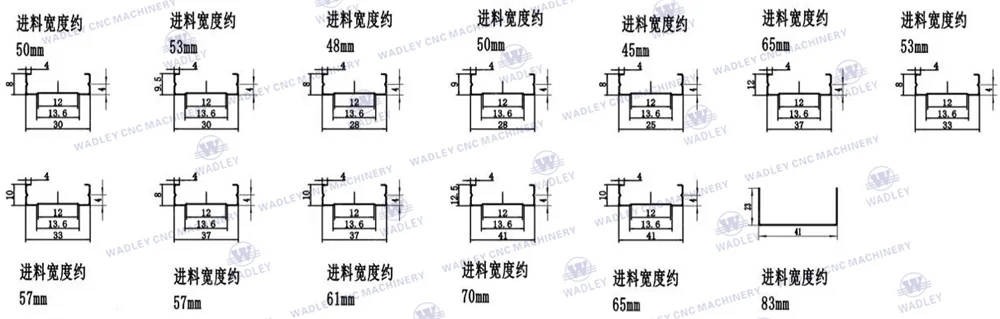

This purlin production line is the latest design and development form WADLEY company. It integrates 13 different types/sizes of CU purlins into one forming machine.It uses servo motors for precise feeding.
Description
The 13 in 1 CU Purlin Roll Forming Machine
This purlin production line is the latest design and development form WADLEY company. It integrates 13 different types/sizes of CU purlins into one forming machine.It uses servo motors for precise feeding.The wheels use electroplating overtime process (extending the power-on time in the electroplating tank to deposit a thicker coating of metal ions on the roller surface) to achieve mirror-level polishing, wear resistance and corrosion resistance. It can reach a speed of 100 meters per minute, and completes production tasks at high speed and high efficiency, greatly saving labor. It can be called the ceiling of the keel equipment industry.
Product Details
- 1 Easy operate, full auto.
- 2 Adopting advanced world famous brand components in electric parts operation part.
- 3 High speed, non stop tracking cutting.
- 4 High precision, making finished sheet in good appearance.
- 5 Long life time.
Parameter
| Material | Raw material | Galvanized steel |
| Thickness | 0.3-0.8 mm | |

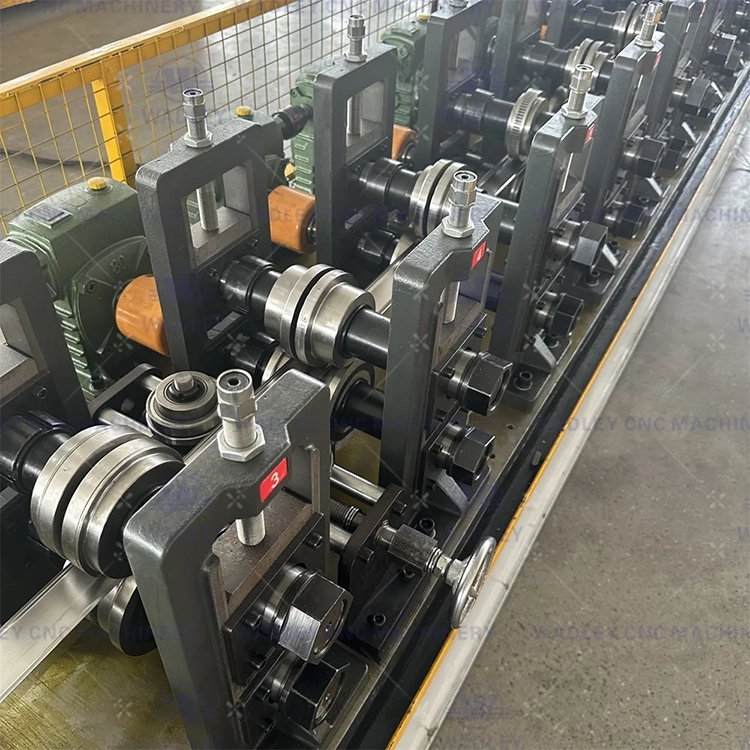

| Machine | Roller station | 16 |
| Shaft diameter | 55 mm | |
| Shaft material | 45# steel with 0.05mm chrome | |
| Roller material hardness 30-40 HRC | Cr 12 | |
| Machine size | About 4.8*0.8*1 m | |
| Machine weight | About 1.8 ton | |
| Machine color | As customer' request | |
| Working speed | 20-30 m/min | |
| Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | 1 mm | |
| Material | Cr 12 | |
| Operate | Hydraulic cutting | |
| Power | Driving way | Chain 1 inch |
| Main power | 4 kw | |
| Pump power | 3 kw | |
| Voltage | 380v/50HZ,3P or customize | |
| as customer' request | ||
| Control system | PLC brand | Delta made in Twaiwan |

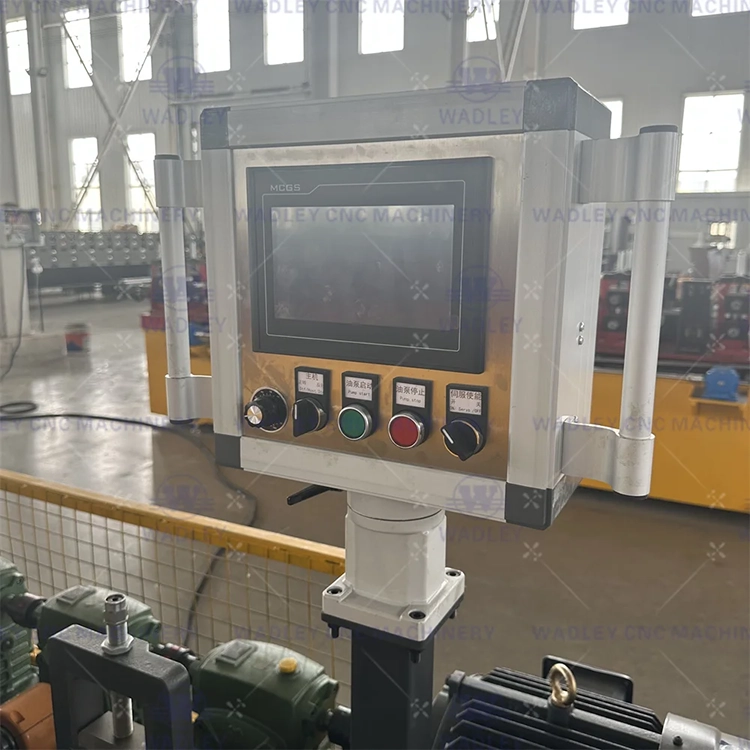

| Screen | Touchable screen | |
| Language | Chinese and English or add language as customer need | |
| Decoiler | Operation | Manual |
| Weight capicatity | 3 ton | |
| Price | Free as gift | |
| Receiving table | Operation | Manual |
| Length | 3 m | |
| Price | Free as gift |
