90 Degree Steel Coil Turnover Machine
Coil upender is major used for turning over the heavy articles from one side to another. It is popular in heavy industries for lessening labor and saving time. What’s more, it also can be worked together with other machines forming into a production line.
Description

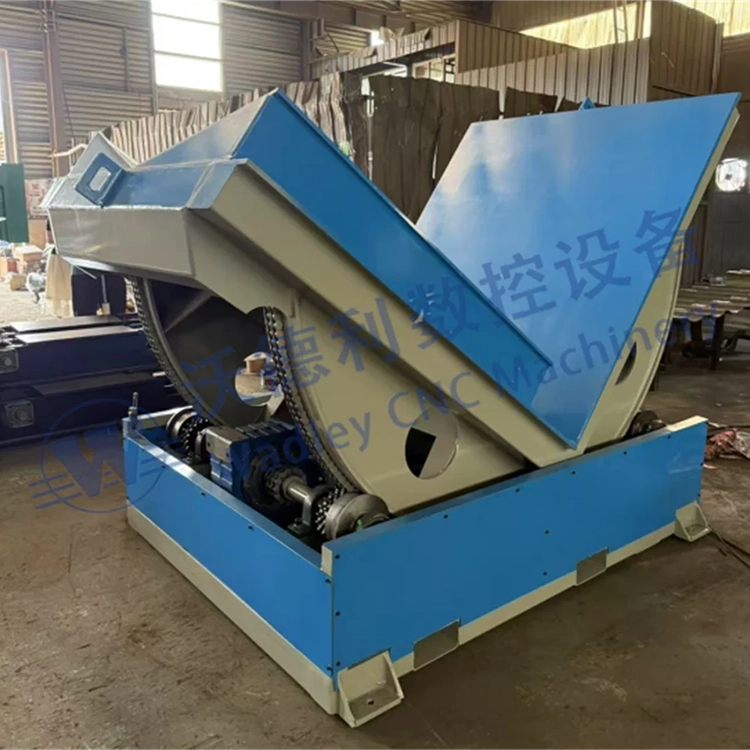

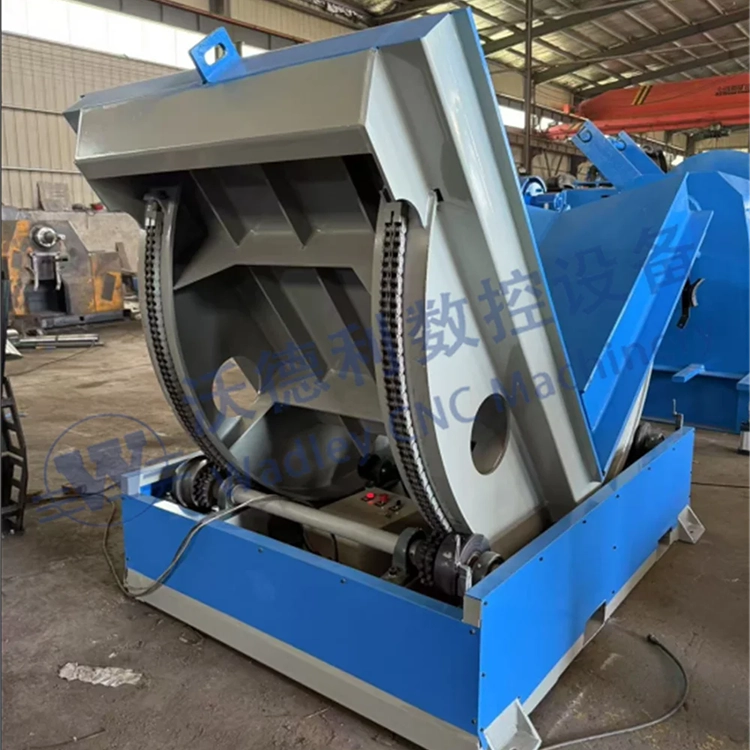

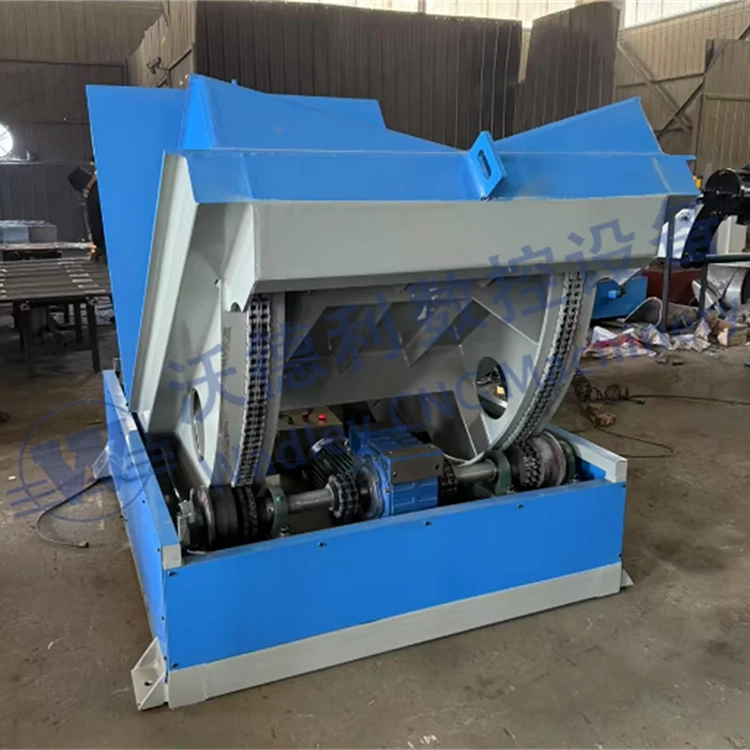

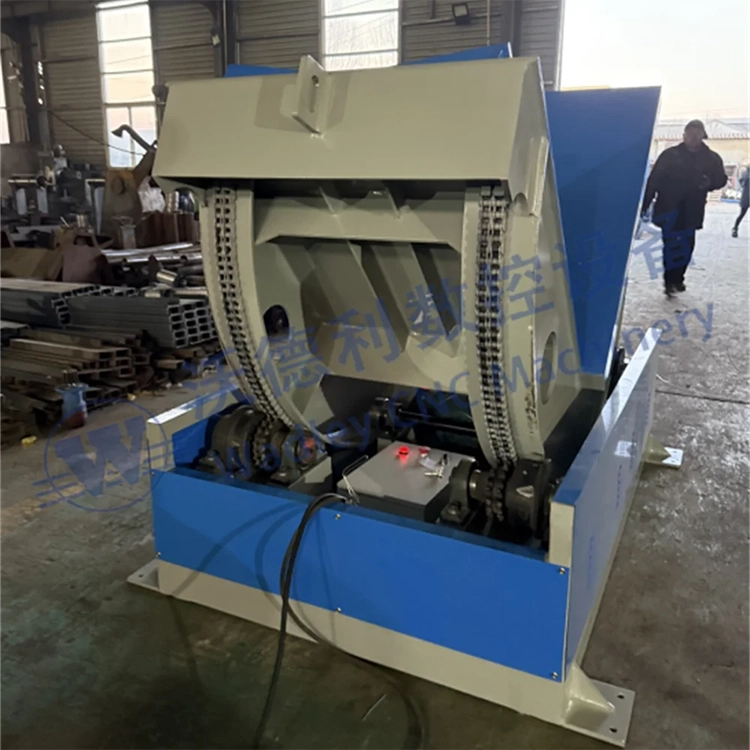

90 Degree Steel Coil Turnover Machine

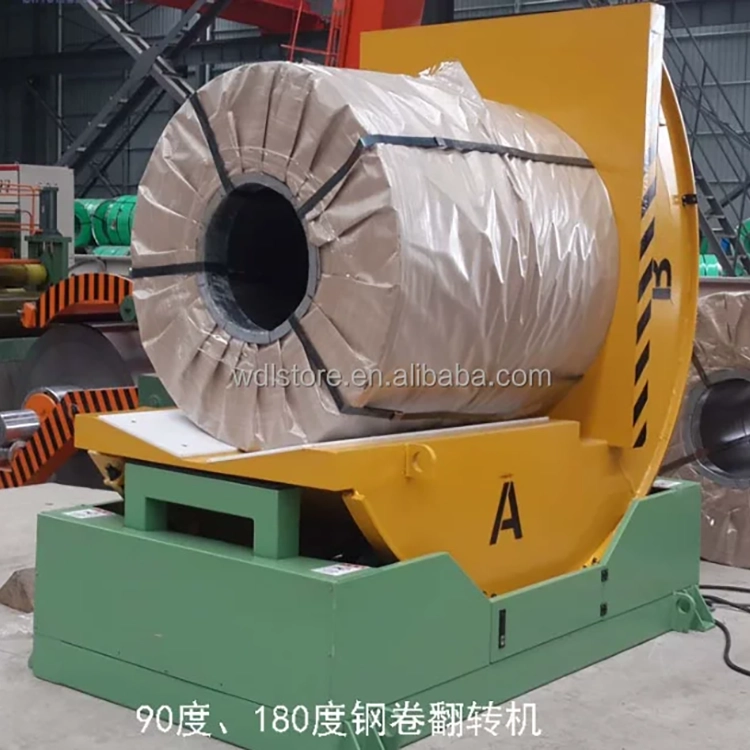

A 90-Degree Steel Coil Turnover Machine is an automated material handling device specifically engineered to safely and efficiently change the spatial orientation of heavy steel coils. It performs a 90-degree rotation to switch coils between a horizontal (flat) and a vertical (on-edge) position, meeting the feeding requirements of different processing lines (e.g., vertical or horizontal uncoilers). Driven by hydraulic or electromechanical power, it replaces hazardous and inefficient manual or crane-assisted turning operations with smooth, controlled movement, significantly enhancing operational safety and logistics efficiency.
Product Details

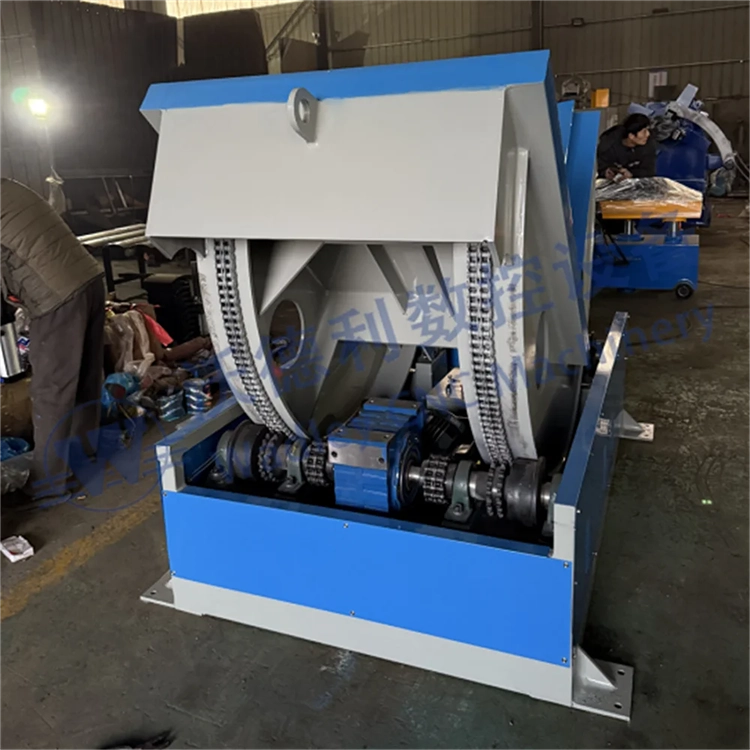

- 1 Adopting special double chain drive, oblique gear & worm speed reducer is to control the turning speed;
- 2 It can be remote operation with a separated control panel;
- 3 Multiple position limit system ensures safe operation.
- 4 Adjustable mechanical pressure device is adopted;
- 5 In order to make safe and effective, inverter control is adopted;
Parameter
| Load capacity | 5T |
| Motor power | 2.2KW |
| Turning speed | About 35-60 seconds |
| Turning table size | Diameter 1200mm height 1000mm |
| Transmission mode | Mechanical transmission |

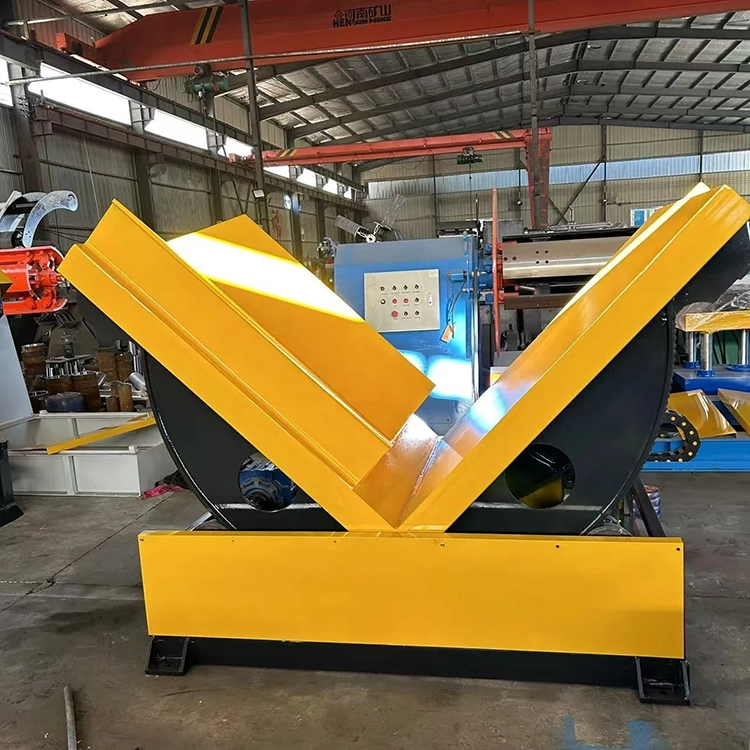

| Table shape | Customized table(A-side plane/B-side “V”) |
| Operation mode | Wireless handle + independent Control cabinet |
| Turning angle | 90° |
