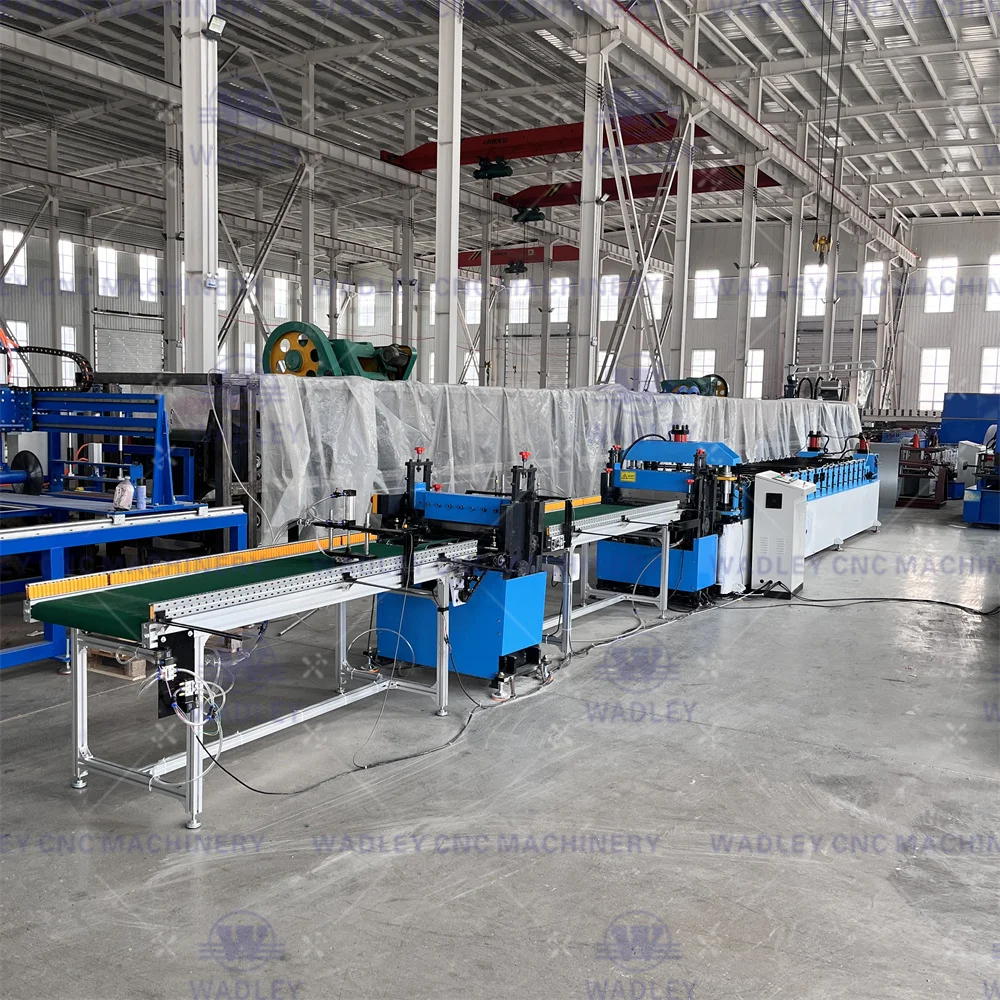

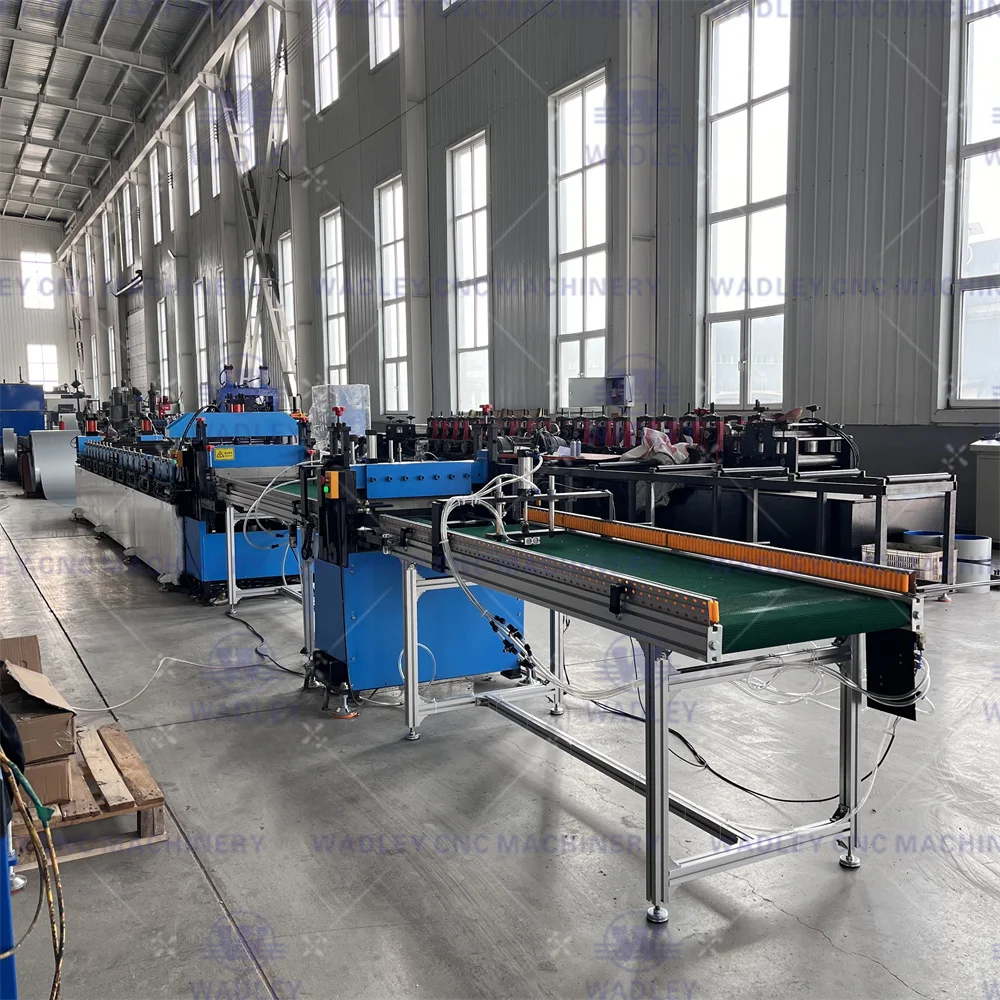

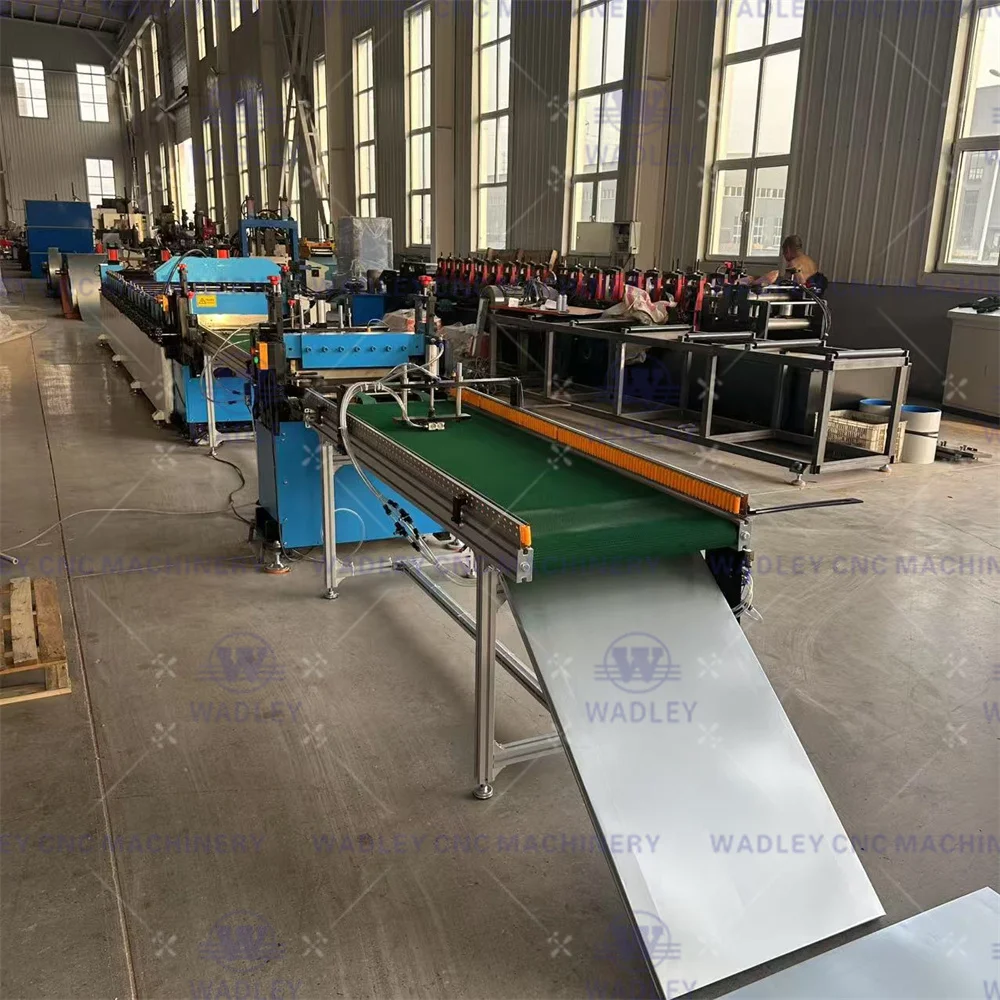

Automatic Rack Shelf Panel Making Machine

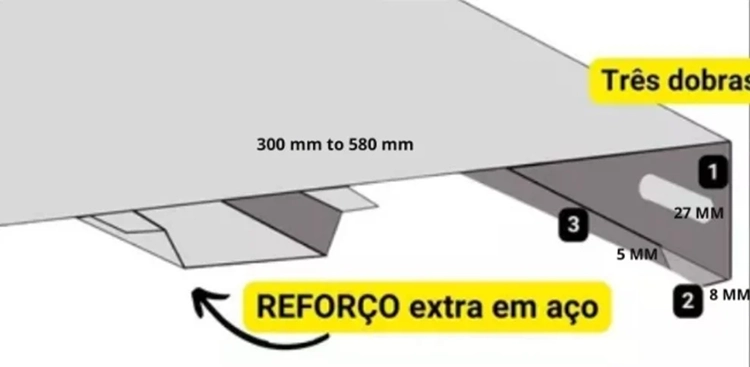

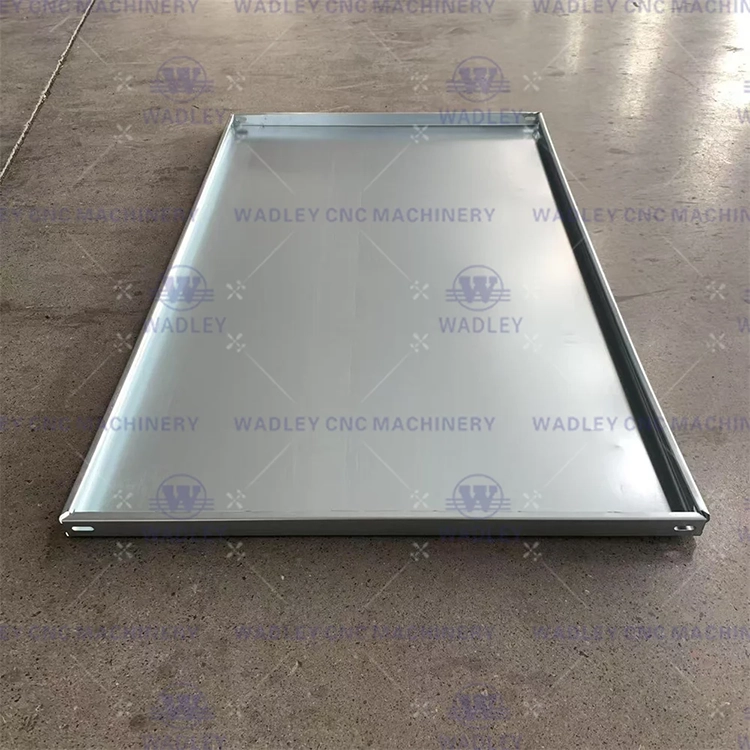

Supermarket Storage Pallet Roll Forming Machine is used to produce shelf components for warehousing series, and the finished product is “shelf panel”. It is mostly used for light shelf components such as goods display, placement, and merchandise display in warehouses, supermarkets, and small and large shopping centers.
Description
Supermarket Storage Pallet Roll Forming Machine is used to produce shelf components for warehousing series, and the finished product is “shelf panel”. It is mostly used for light shelf components such as goods display, placement, and merchandise display in warehouses, supermarkets, and small and large shopping centers.
Product Details
Advantages of storage shelf forming machine and shelf forming equipment:
- 1 Highly automated procedures to reduce manual operation;
- 2 High work efficiency, improve enterprise productivity;
- 3 The production process of the whole process is stable to improve the quality and consistency of products;
- 4 Mass production reduces the production cost of enterprises.
Parameter
|
No. |
Item |
Data |
|
1 |
5T hydraulic decoiler |
Max 5T Max coil:800mm Hydraulic expansion and motorizied decoiling |
|
2 |
Holes Punching & corner cut |
We use hydraulic punching machine 2 sets Corner cut mould 1 set Lateral holes punching mould |
|
3 |
Logo stamping |
Stamping mould:1 set |
|
4 |

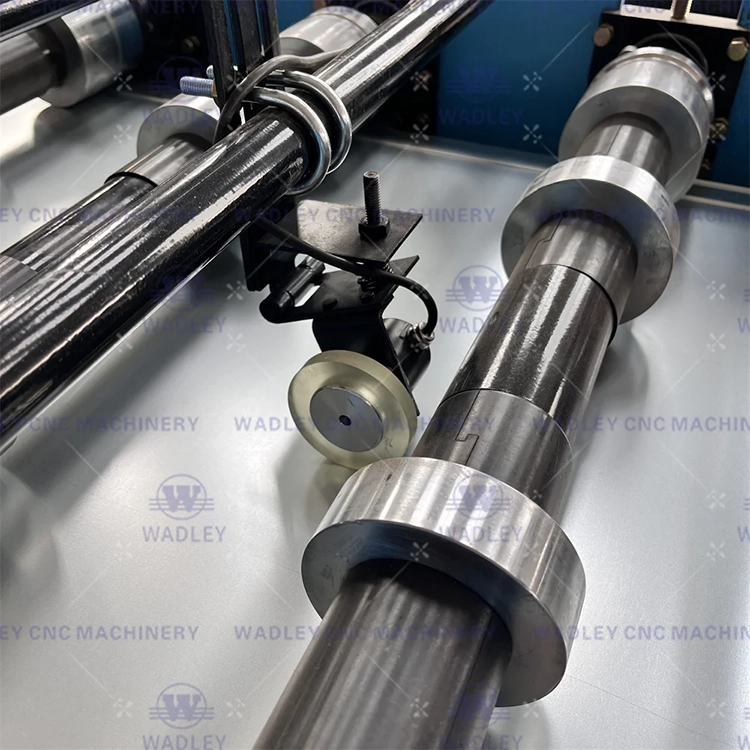

Roll forming Machine |
Wall Panel Catilever Structure 24 Forming Stations 15KW Motor Made In China |
|
5 |
Hydraulic Cutting&bending mould combination |
Cutting power:7.5kw Mould material:Cr12.HRC58-62 |
|
6 |
Run-out table |
Steel frame with Rollers |
|
7 |

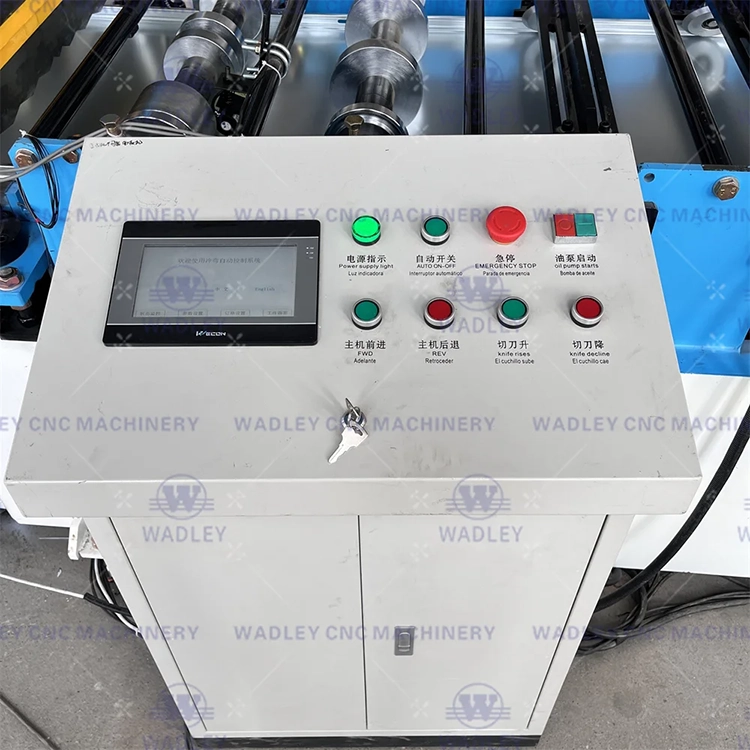

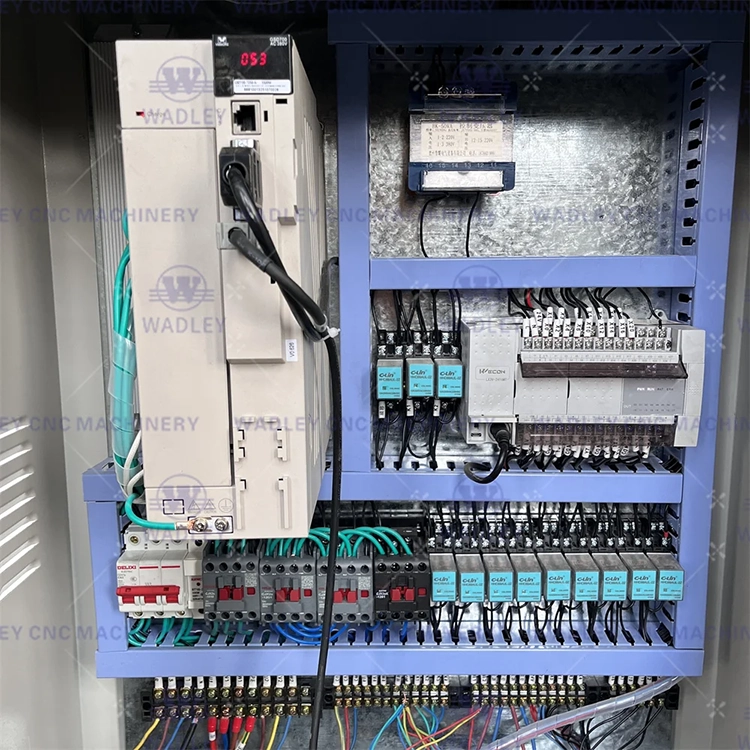

Electric control panel |
PLC Control |
|
8 |
Suitable material |
Galvanized Steel Coils |
|
9 |
Material Thickness |
0.8-1.2mm |
|
10 |
Material width |
According to design deawing |
