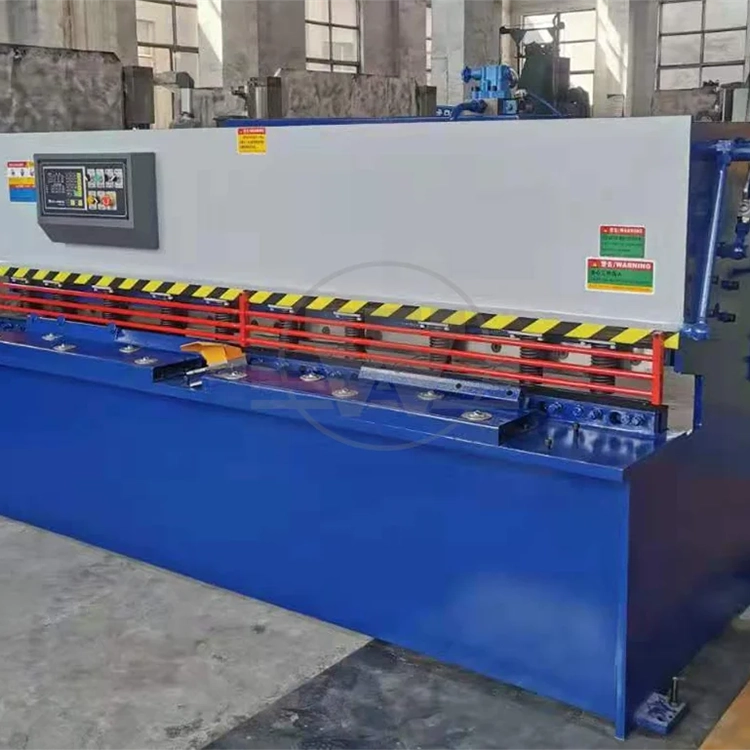

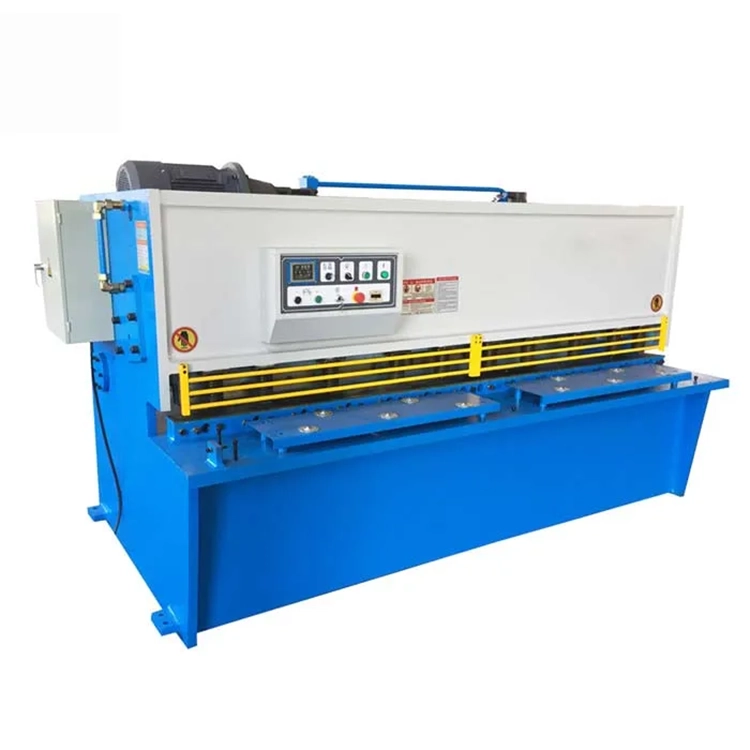

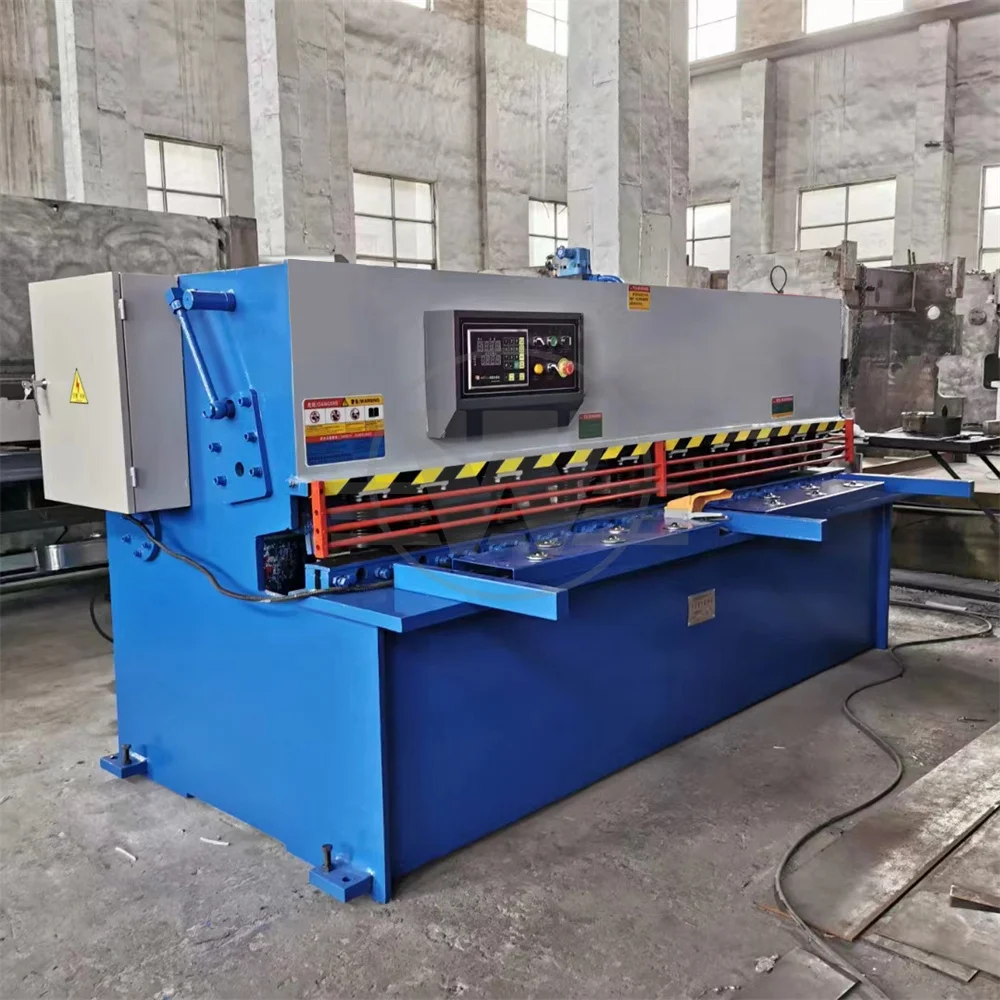

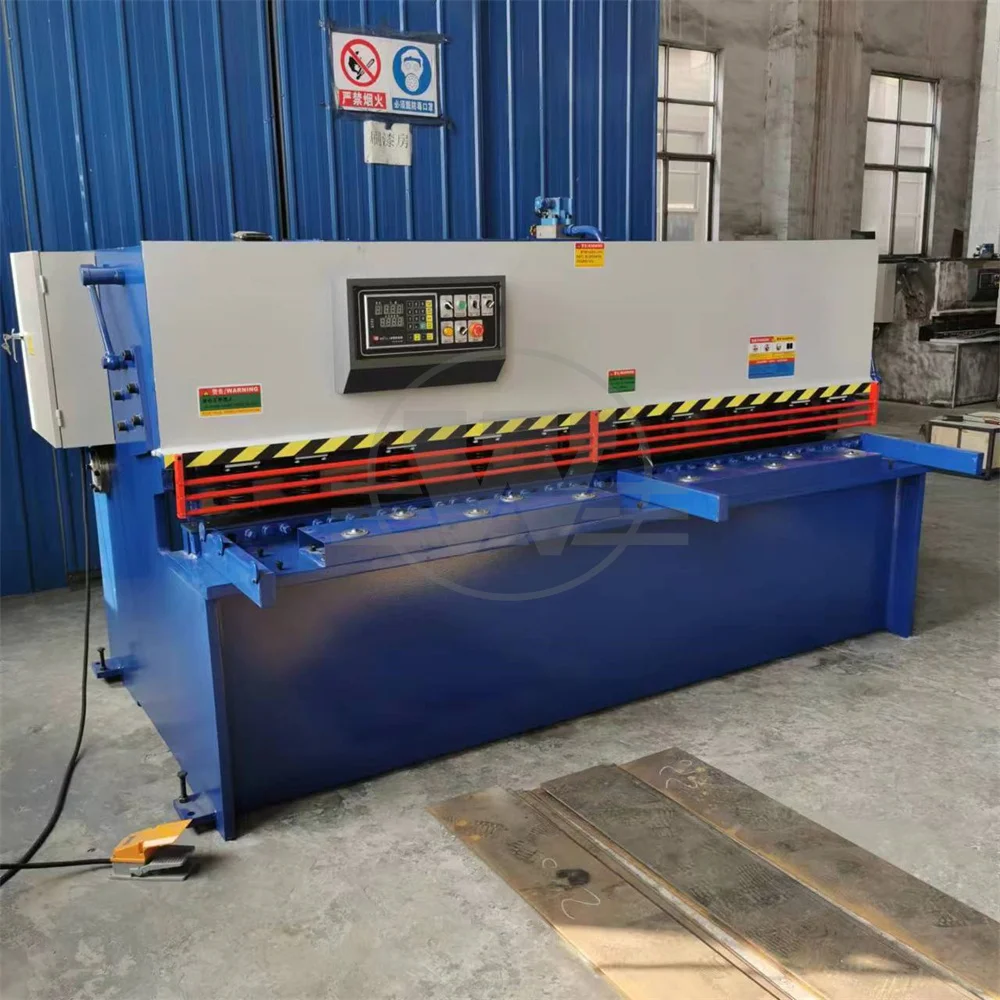

CNC Guillotine Shearing Machine

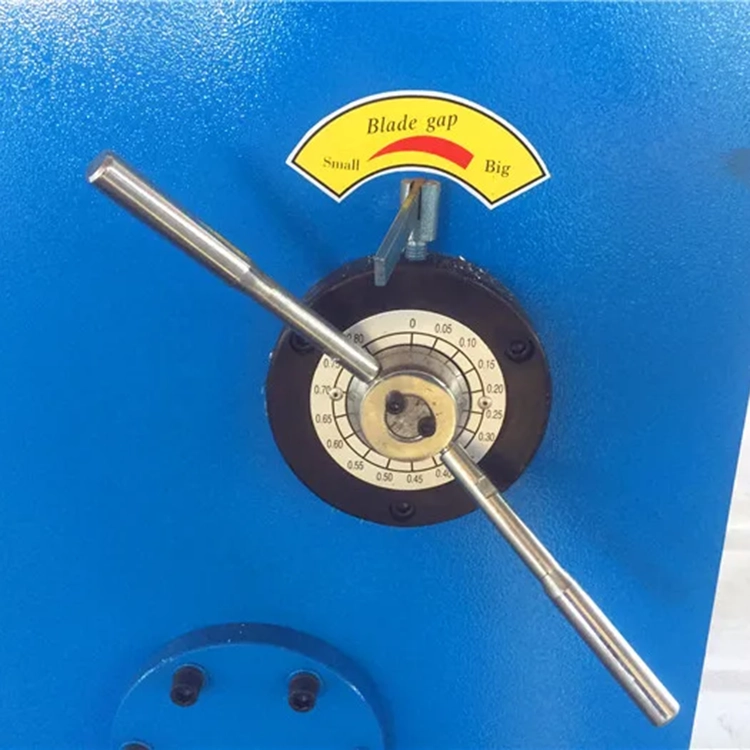

The CNC shearing machine is a machine that uses a reasonable blade gap to apply a shearing force to various thicknesses of sheet metal by means of a moving upper blade and a fixed blade gap to break the plate in a desired size.Widely used in industrial machinery, metallurgical industry, automobile, shipbuilding, electrical appliances, engineering equipment, sheet metal processing, steel pipe welding, electronic industry, aerospace industry, agricultural machinery manufacturing, dining furniture machinery industry.
Description

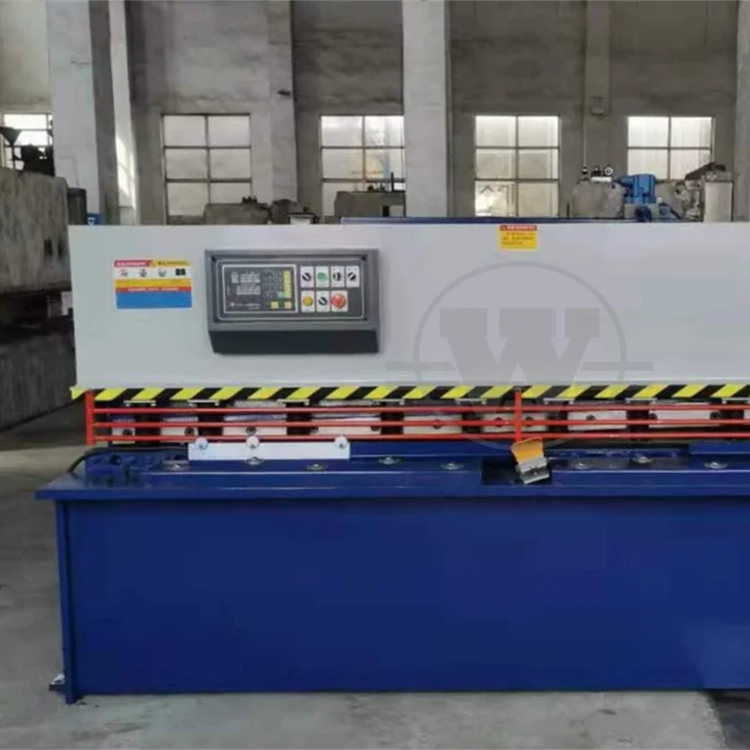

CNC Guillotine Shearing Machine
The CNC shearing machine is a machine that uses a reasonable blade gap to apply a shearing force to various thicknesses of sheet metal by means of a moving upper blade and a fixed blade gap to break the plate in a desired size.Widely used in industrial machinery, metallurgical industry, automobile, shipbuilding, electrical appliances, engineering equipment, sheet metal processing, steel pipe welding, electronic industry, aerospace industry, agricultural machinery manufacturing, dining furniture machinery industry.
Product Details
- 1 Totally EU streamlined design, by welding robots & aparatus and stress relief process by Annealing treatment. b.engineers utilize parametric 3D Solid Works using FEM & DOE analysis as well as static and mechanism analysis.

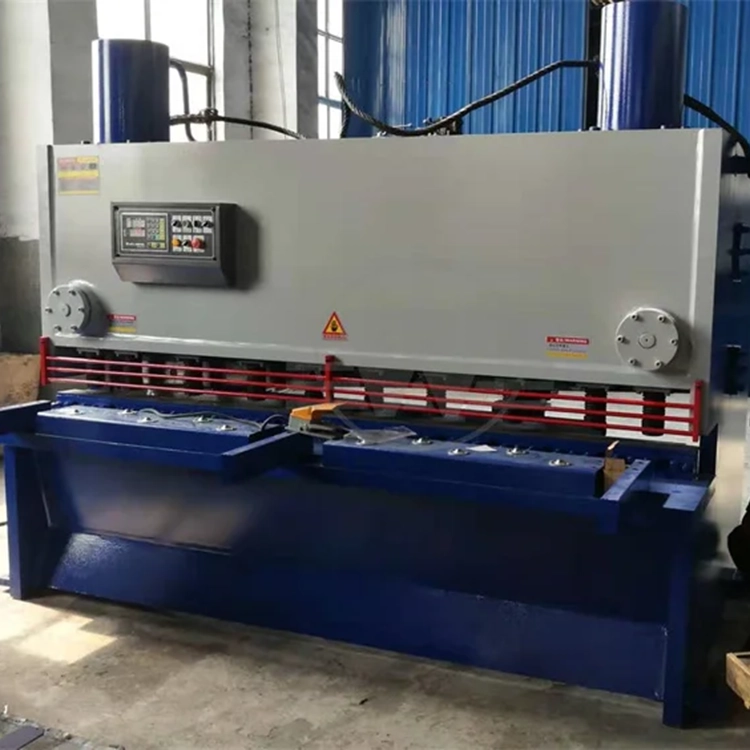

- 2 Hydraulic Shearing Machine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.
- 3 Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system.
- 4 Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.

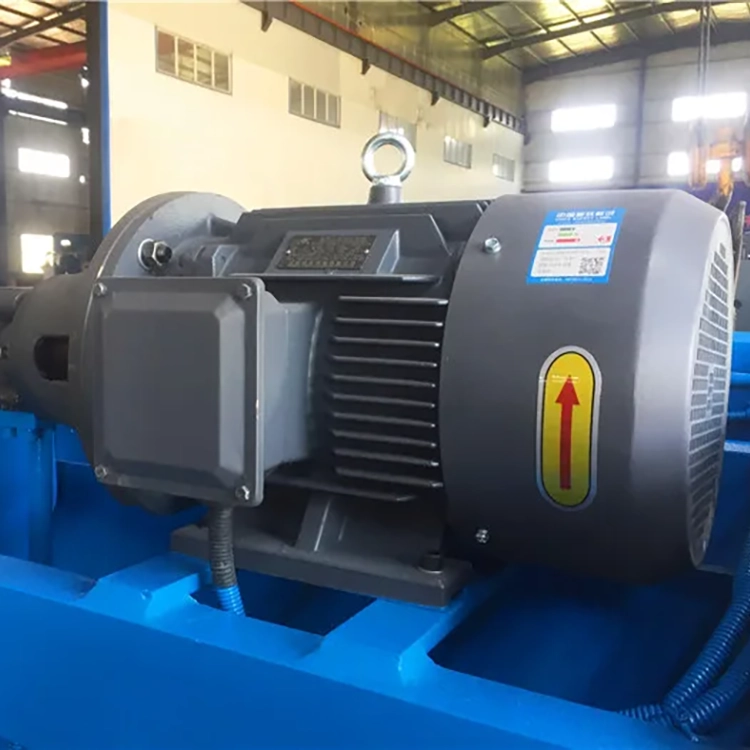

- 5 Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
Parameter

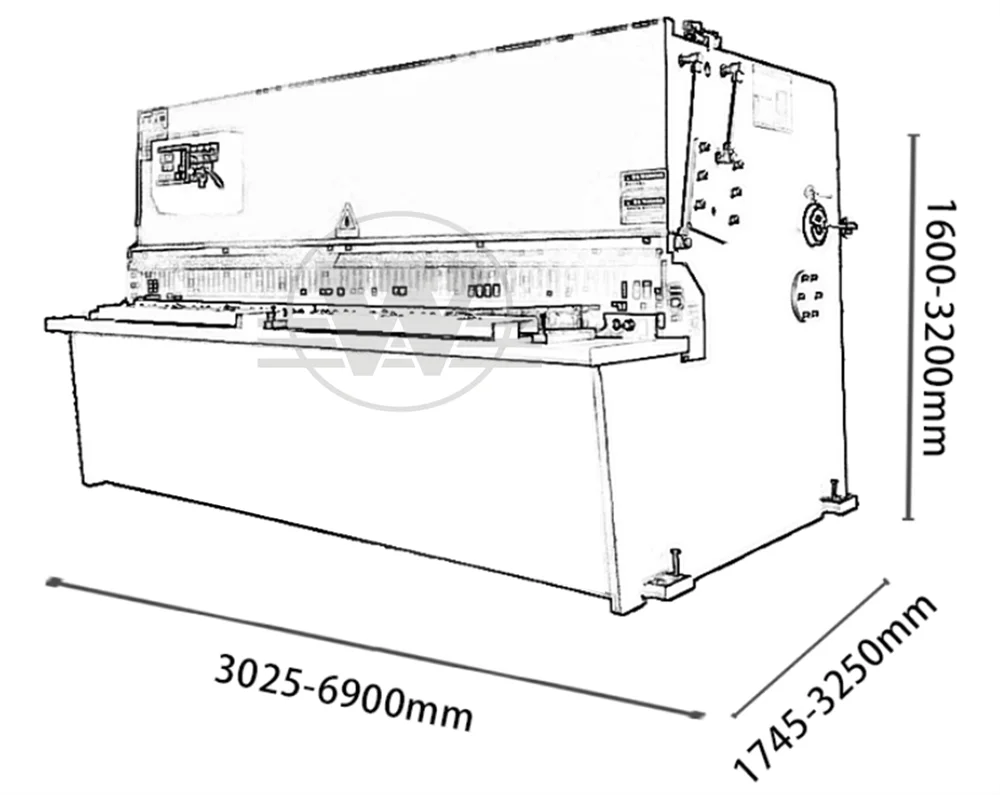

| Model | Cutting thickness (mm) | Cutting length (mm) | Travel Times(times/min) | Back gauge | Cutting | Main | Dimensions |
| Rang | Angle | Power | (LxWxH) | ||||
| (mm) | ( °) | (Kw) | (mm) | ||||
| 4*2500 | 4 | 2500 | 32 | 600 | 1.5 | 5.5 | 3040*1500*1550 |
| 4*3200 | 4 | 3200 | 13 | 600 | 1.5 | 5.5 | 3840*1550*1600 |
| 4*4000 | 4 | 4000 | 10 | 800 | 1.5 | 5.5 | 4600*1800*1700 |
| 4*6000 | 4 | 6000 | 8 | 600 | 1.5 | 7.5 | 6460*2300*2400 |
| 6*2500 | 6 | 2500 | 15 | 600 | 1.5 | 7.5 | 3040*1710*1650 |
| 6*3200 | 6 | 3200 | 12 | 600 | 1.5 | 7.5 | 6840*1710*1650 |
| 6*4000 | 6 | 4000 | 9 | 600 | 1.5 | 7.5 | 4620*1850*1700 |
| 6*5000 | 6 | 5000 | 9 | 800 | 1.5 | 7.5 | 3140*1710*1620 |
| 6*6000 | 6 | 6000 | 5 | 600 | 1.5 | 11 | 6480*2100*2300 |
| 8*2500 | 8 | 2500 | 14 | 600 | 1.5 | 7.5 | 3040*1700*1700 |
| 8*3200 | 8 | 3200 | 14 | 600 | 1.5 | 11 | 3860*1700*1700 |
| 8*4000 | 8 | 4000 | 10 | 600 | 1.5 | 11 | 4640*1900*1750 |
| 8*5000 | 8 | 5000 | 8 | 800 | 1.5 | 11 | 6400*2400*2000 |
| 8*6000 | 8 | 6000 | 6 | 600 | 1.5 | 11 | 6480*2100*2350 |
| 10*2500 | 10 | 2500 | 10 | 600 | 2 | 15 | 3040*1800*1700 |
| 10*3200 | 10 | 3200 | 9 | 600 | 1.75 | 15 | 3860*200*1700 |
| 10*4000 | 10 | 4000 | 8 | 800 | 1.5 | 15 | 4650*2100*2000 |
