Customizable

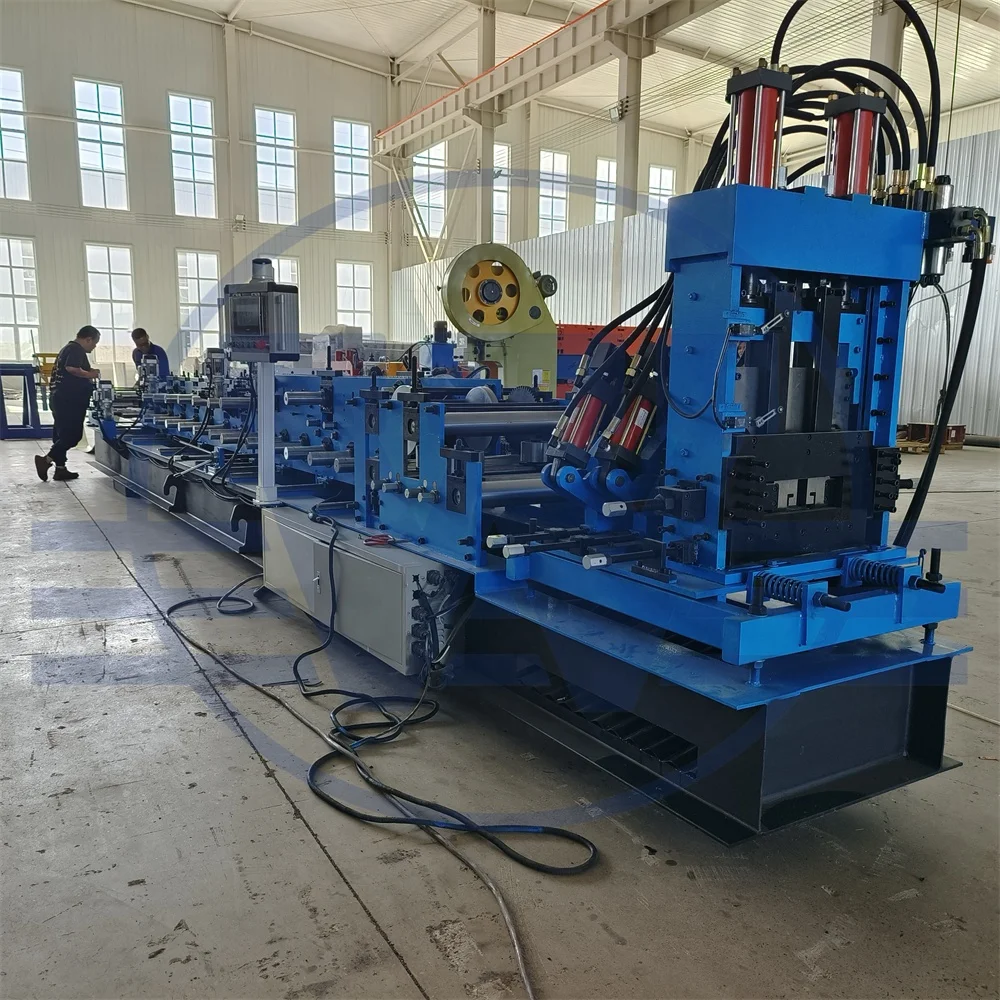

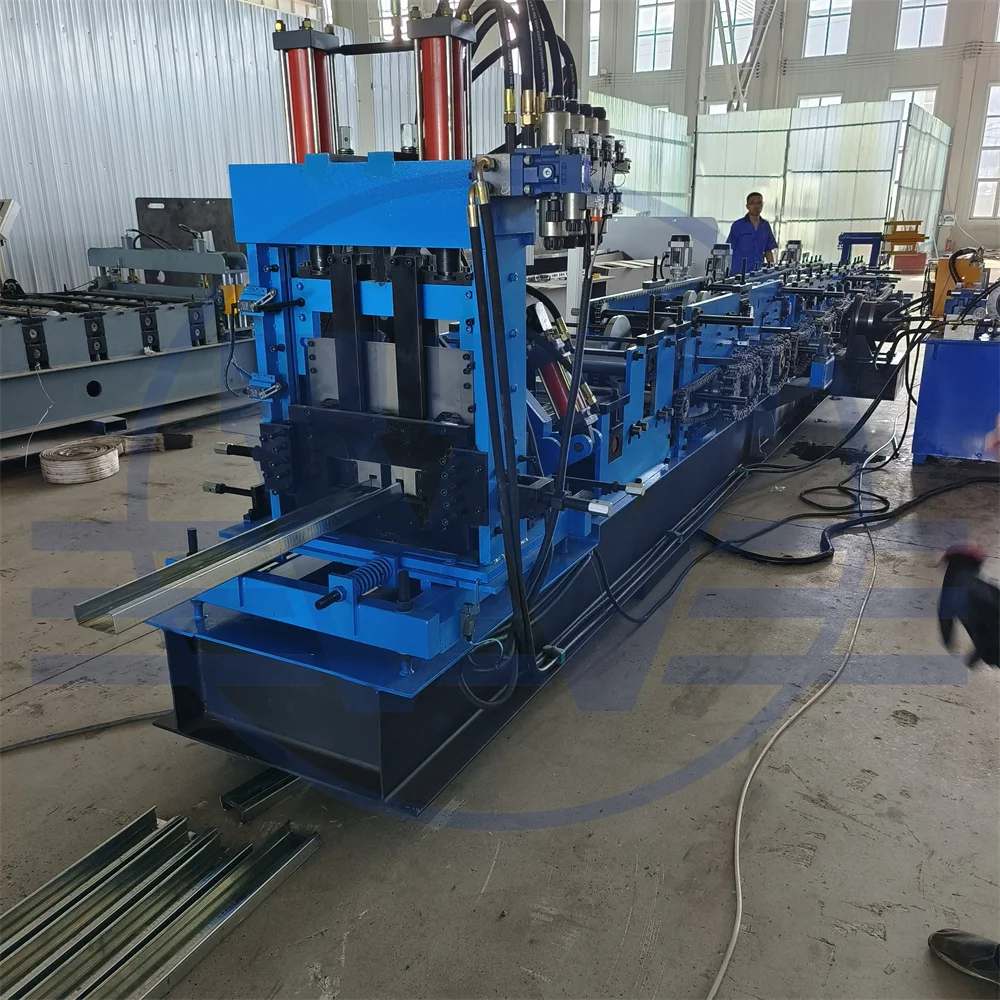

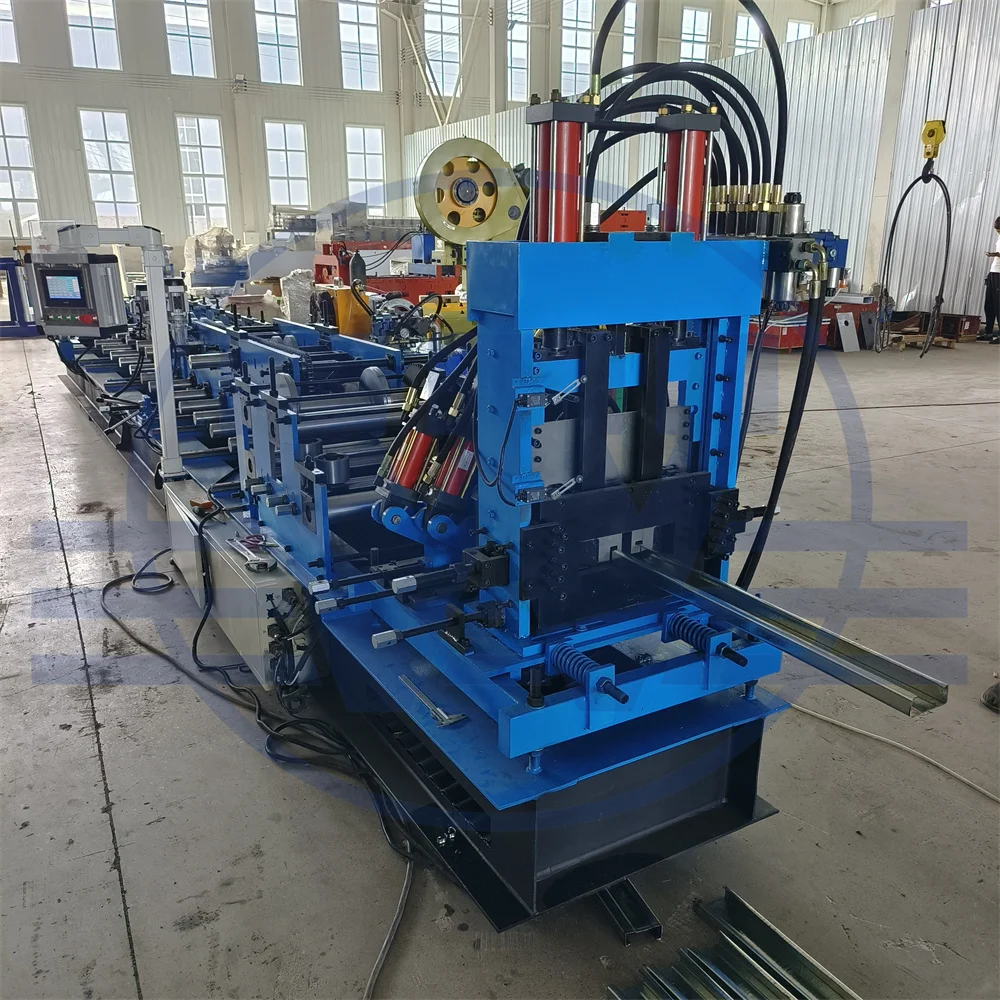

CU Channel Steel Profiled Roll Forming Machine
CU type purlin roll forming machine used in the production of steel structure industry.The finished product produced by machinery and equipment is CU steel, which is mostly used for the support of beams and wall beams in housing construction and factory buildings,applicable materials are "strip steel"galvanized steel coil etc.
Description
Product Details
- 1 Easy operate, full auto.
- 2 Adopting advanced world famous brand components in electric parts operation part.
- 3 High speed, non stop tracking cutting.
- 4 High precision, making finished sheet in good appearance.
- 5 Long life time.
Parameter
| 1 | Raw Material | Type | GI&PPGI |
| Thickness | 0.3-3mm | ||
| Yield Strength | 235Mpa to 350Mpa | ||
| 2 | Decoiler | Operation | Manual/ Hydraulic for option |
| Weight Capacity | 5Tons | ||
| 3 | Main Body | Roller Station | 18 rows |
| Diameter of Shaft | 80-90mm | ||
| Material of Rollers | Bearing steel | ||
| Material of shaft | 45# steel with chrome 0.05mm | ||
| Transmission | Chain | ||
| 4 | Cutter | Operate | Automatic Hydraulic聽 |
| Blade material | Cr12MOV | ||
| 5 | Power | Pump motor for cutter | 7.5KW |
| Main Motor | 11KW | ||
| Voltage | 380V 50Hz 3 Phase | ||
| 6 | Control system | Electric Box | PLC control system , Inverter |
| Language | English / Chinese | ||
| 7 | Speed | 15-30M/min | |
