Cable Tray Roll Forming Machine

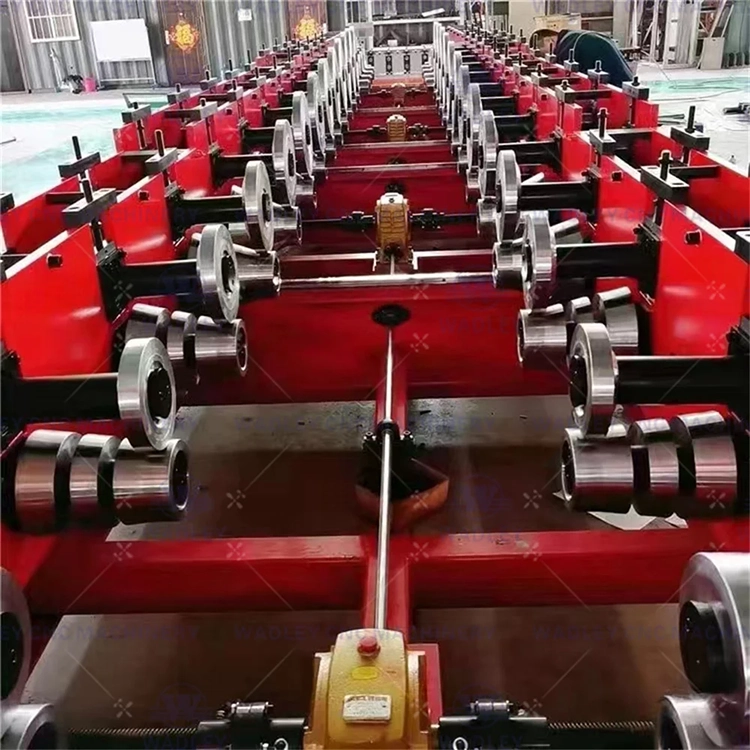

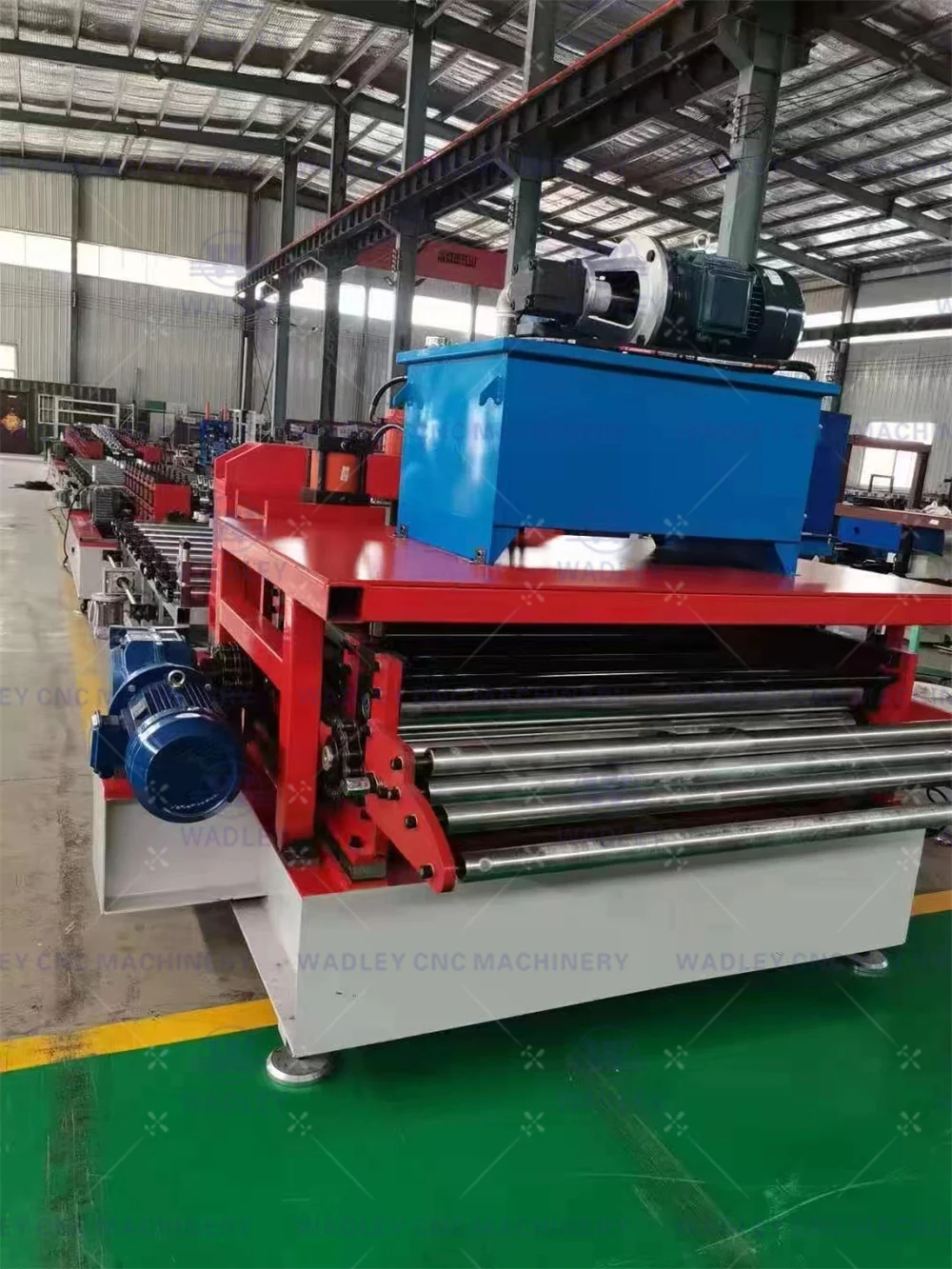

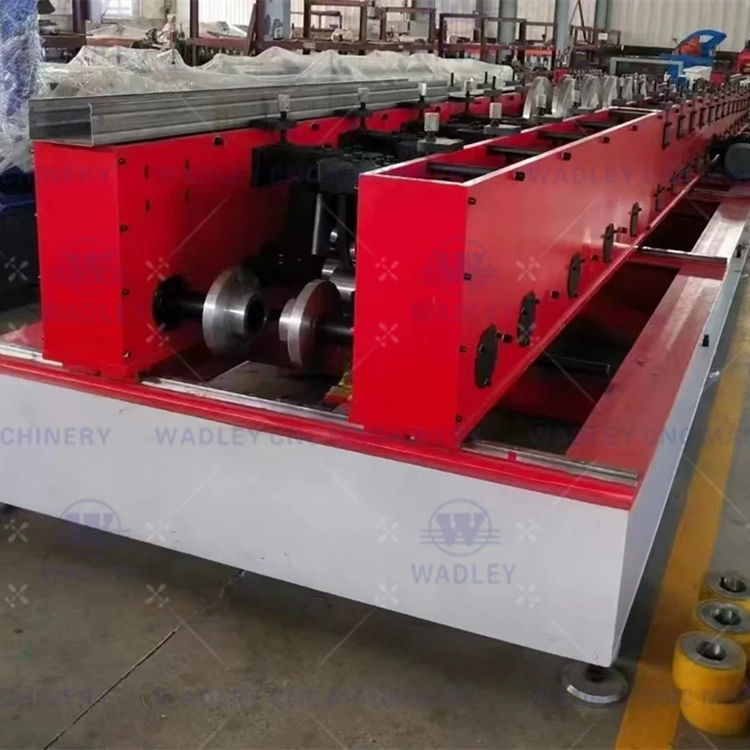

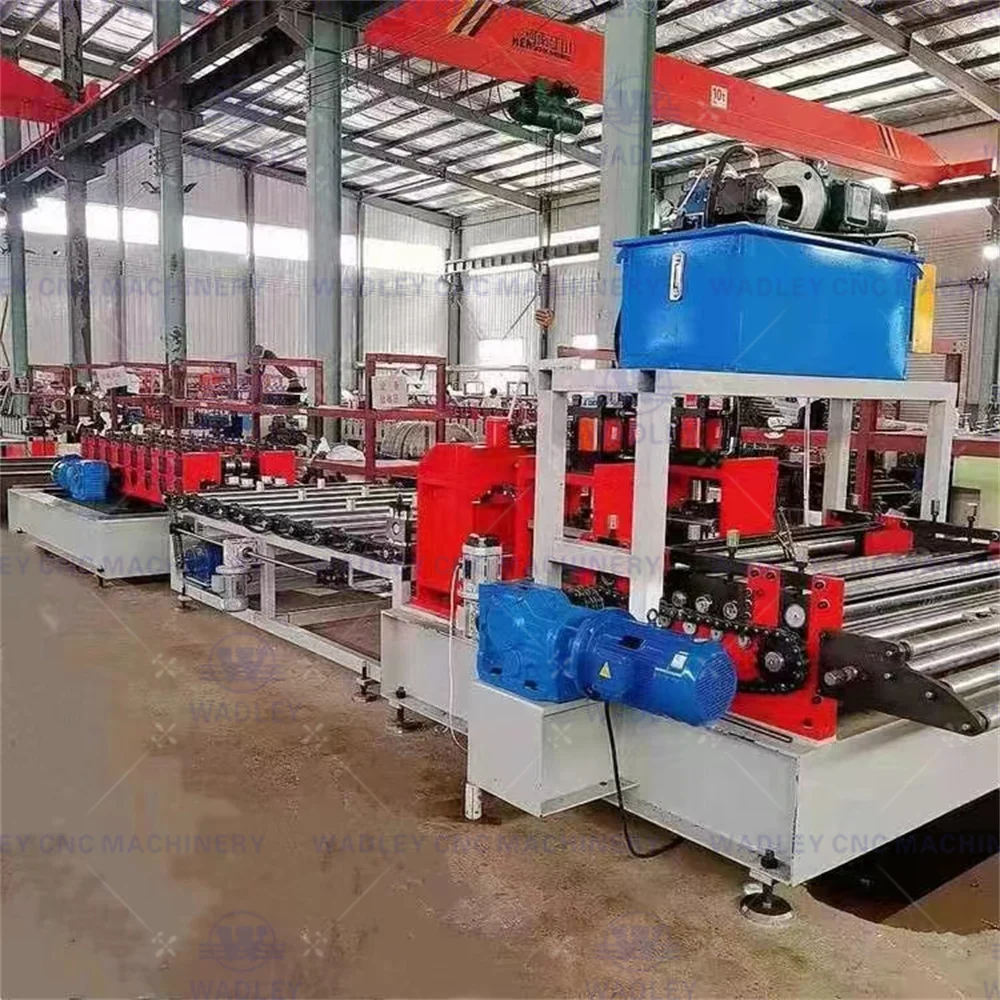

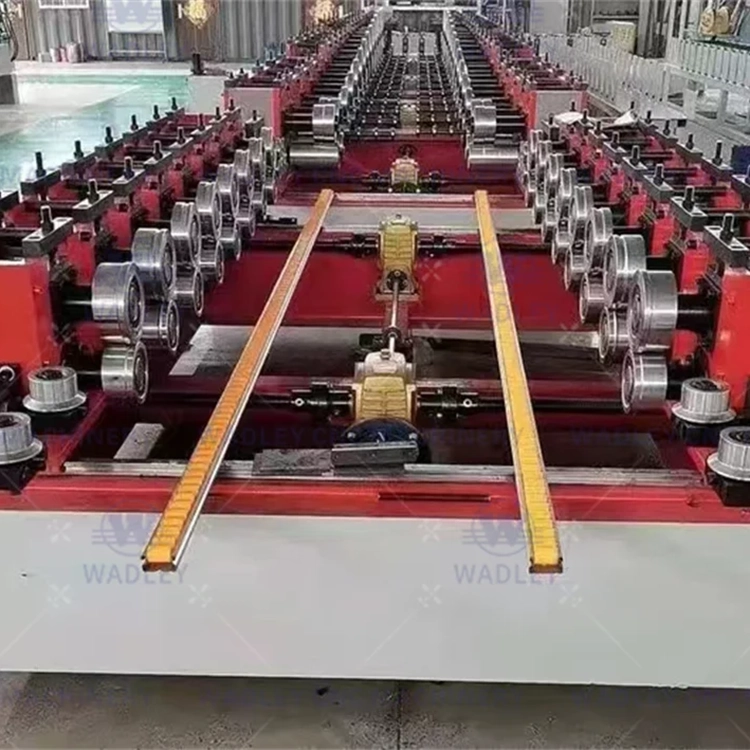

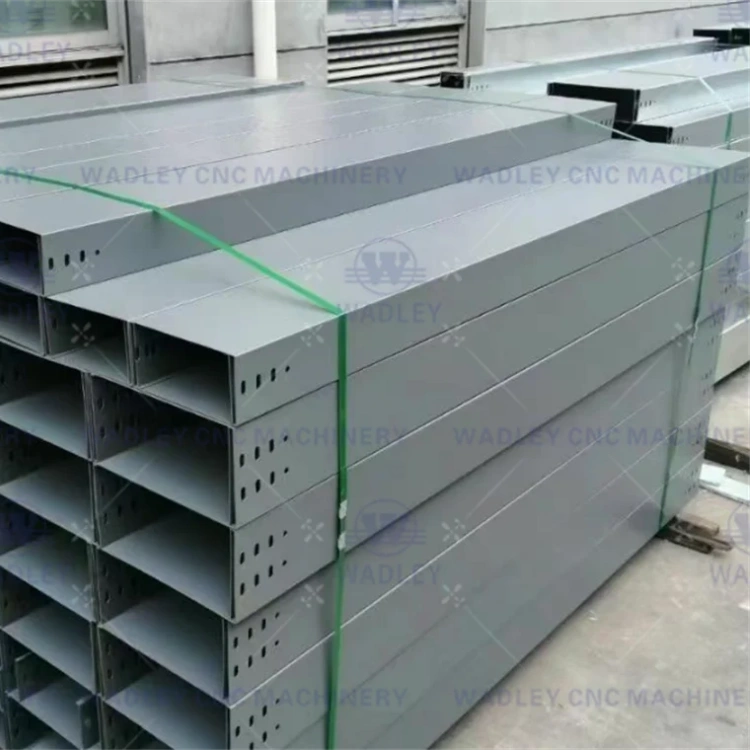

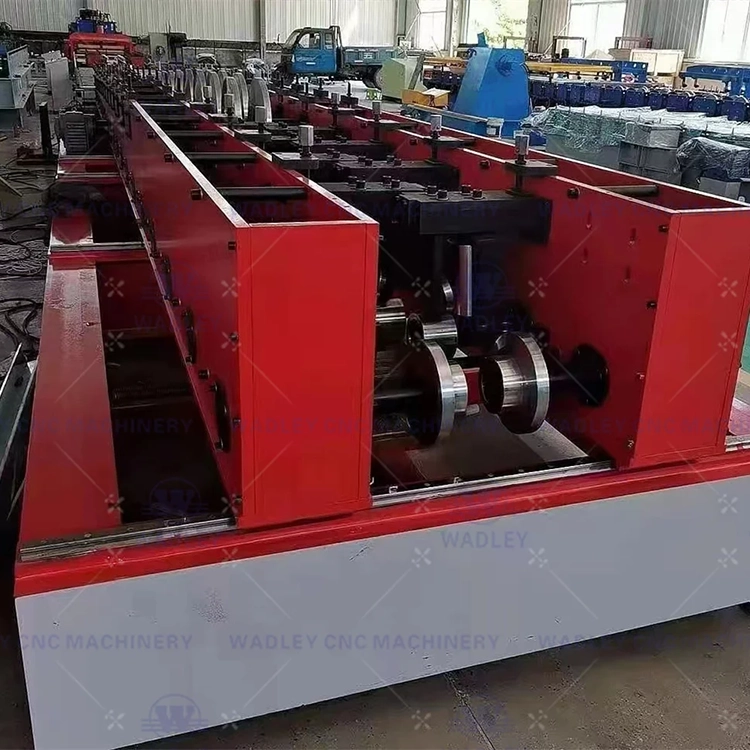

Cable tray roll forming machine is a continuous, automated production line used to manufacture cable trays from metal coils. It shapes the flat sheet metal by passing it through a series of precision roller dies. Each set of rollers progressively bends the metal until it forms the specific cross-sectional profile of the cable tray, such as a ladder, trough, or channel design. This highly efficient process allows for high-speed, consistent production of cable trays in custom lengths. The machine often includes auxiliary stations for punching holes, notching, and cutting the finished product to size. Its key advantages are automation, high output, and the ability to produce strong, uniform cable trays with minimal material waste.

Product Details

Parameter

Model parameters	800/200
Equipment footprint	30×2.5×2.2(L×WXH)m
Rolling strip width	200-650mm
Rolling strip thickness	0.8(±0.03)-1.5 (±0.03)
Product specifications	400V±5,60Hz
Total installed capacity of equipment	About 50KW
Rolling strip material	Q235 cold-rolled strip steel,galvanized sheet
Online punching and production speed	8-16 m/min. Including punching of connecting holes (determined by product length and number of punching holes, excluding punching
	of pallet holes)
Rolling workpiece length	2000—3000 mm
Explosion proof grade of motor	ExdlICT4
Motor protection level	IP55
