Half-Round Rain Gutter Forming Machine
Description

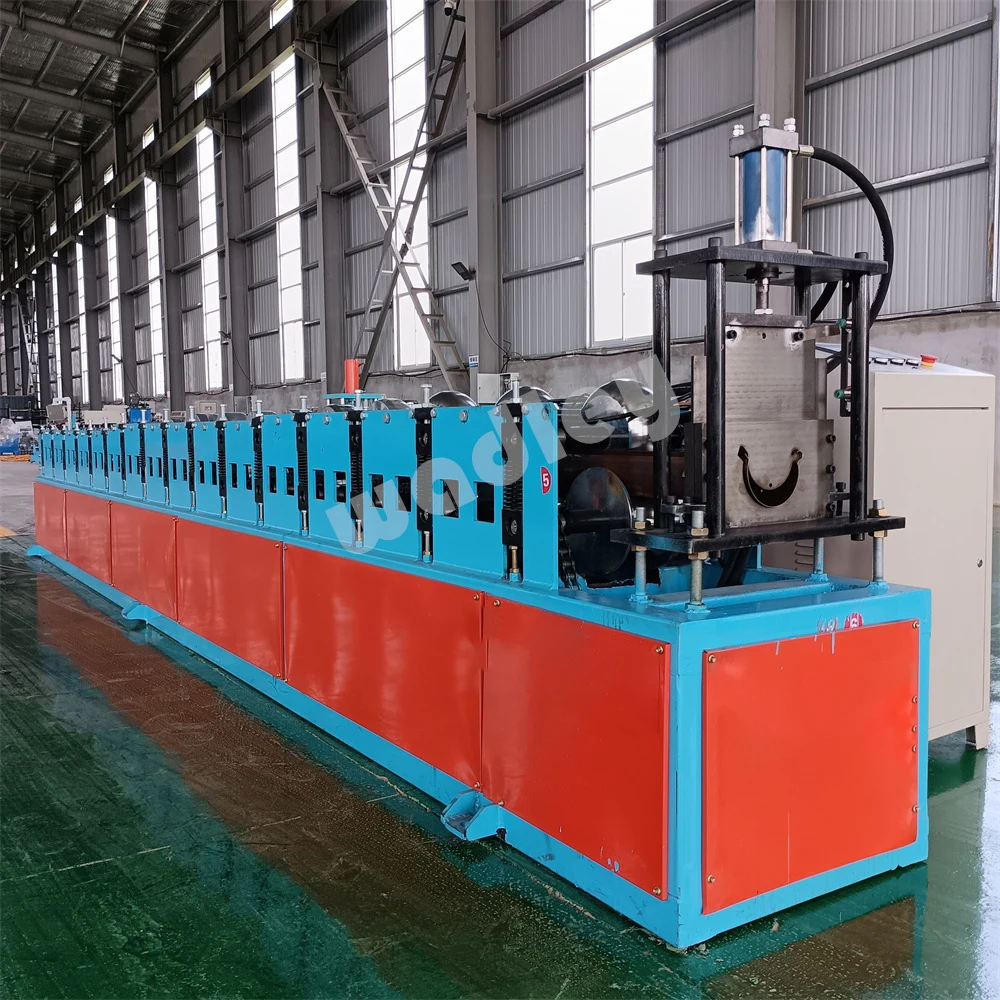

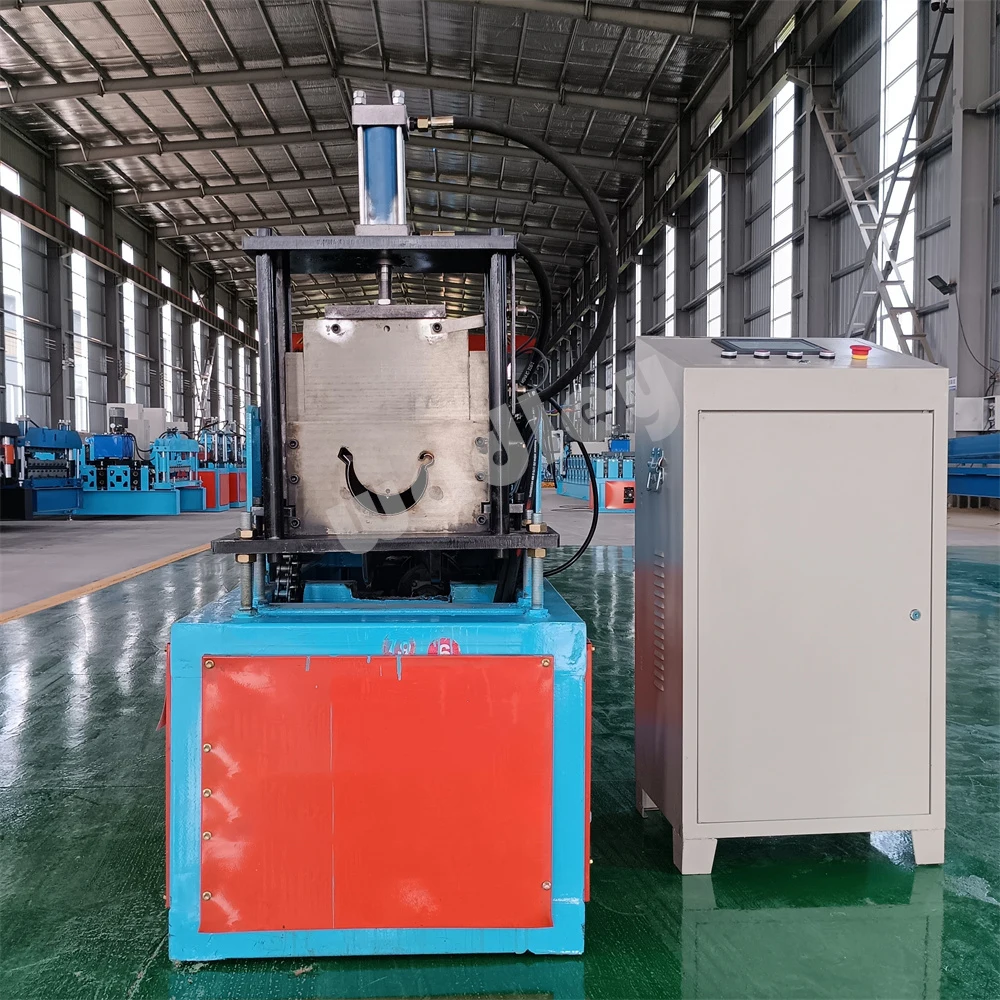

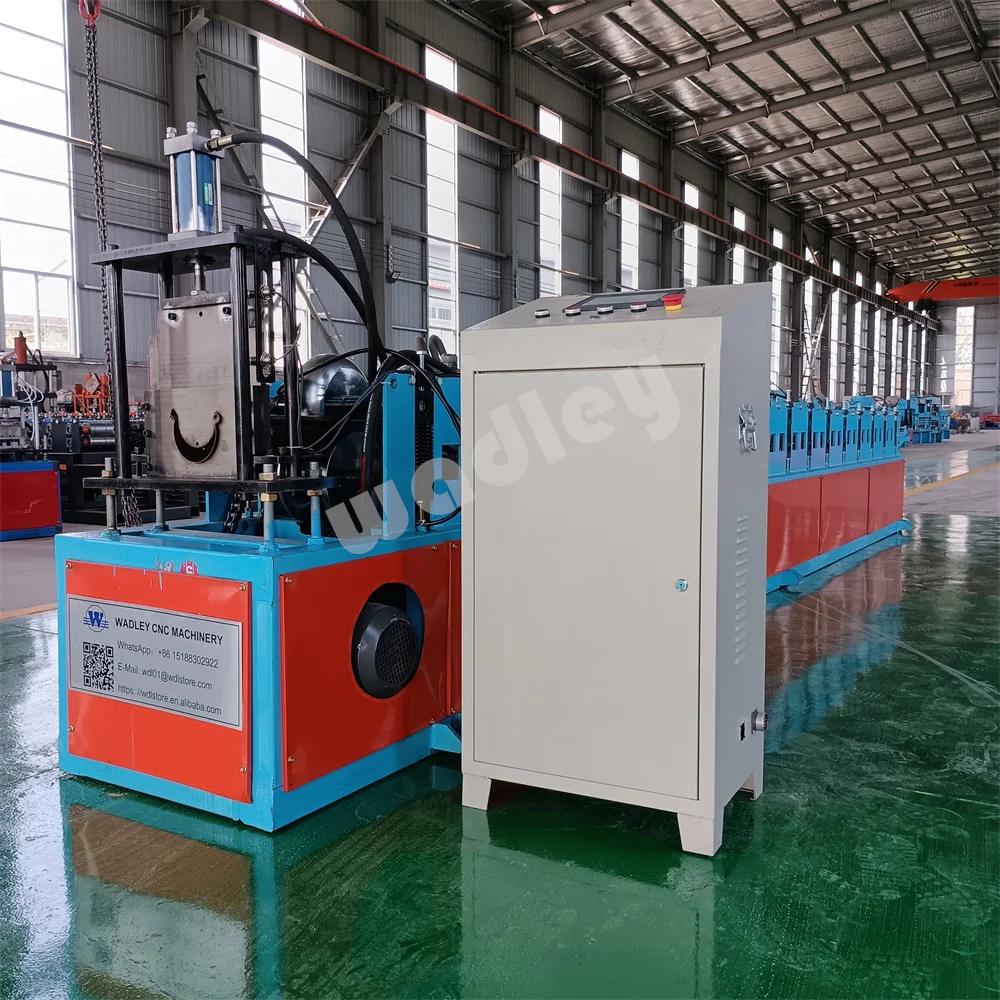

The Half-Round Rain Gutter Forming Machine
Rain Gutter Roll Forming Machine is made by cold-formed forming process. It is widely used by people for its energy-saving and environmentally friendly features. It uses less steel to complete the required specified load, and no longer depends on increasing the amount of plates or materials. The mechanical properties of the steel can meet the load requirements, but the mechanical properties of the steel can be improved by changing the cross-sectional shape of the steel product. Cold bending is a material-saving and energy-saving new metal forming process and new technology. Cold bending is a multi-pass forming and rolling that is arranged in sequence to continuously bend the coils and other metal plates and strips in the transverse direction. Make profiles of specific cross-sections.
Product Details
- 1 The whole machine is controlled by PLC, and multiple safety protections can be set to effectively avoid accidents.
- 2 The bed is made of steel plate welded parts and tempered to effectively eliminate internal stress and the body is not easy to deform.
- 3 The forming frame is welded by channel steel.

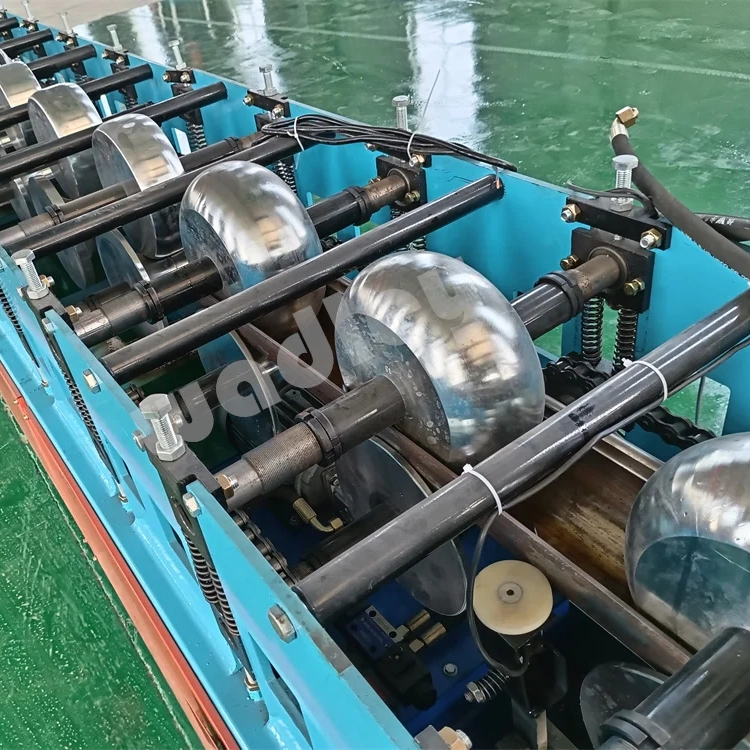

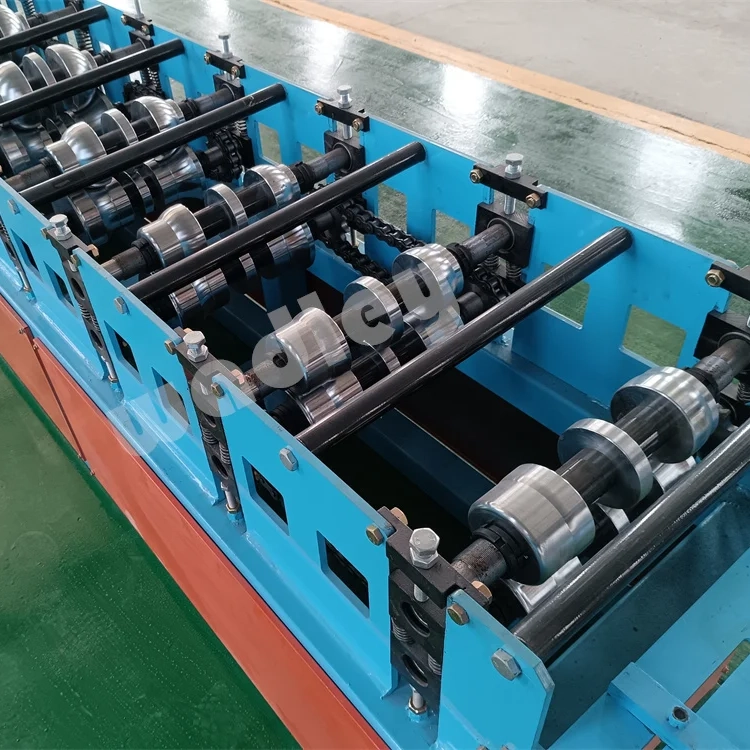

- 4 The roll shaft is made of 45# steel, which has been quenched and tempered.
- 5 The material of forming punching and shearing die is Gr12.
Parameter
| No | Item | Data |
| 1 | Raw material width | 300-600 mm |
| 2 | Sheet effective width | 80-200 mm |
| 3 | Raw material | Color steel sheet , Stainless steel or galvanized steel sheet |
| 4 | Material thickness | 0.3-0.8 mm or customized |
| 5 | Forming roller material | 45# steel plated with chrome |
| 6 | Shaft diameter | 40 mm |
| 7 | Forming roll station | 8-16 steps |
| 8 | Main motor power | 3 KW 4 KW 5.5 KW(according to type) |
| 9 | Hydraulic power |
4 KW (according to type) |
| 10 | Control system | PLC control |
