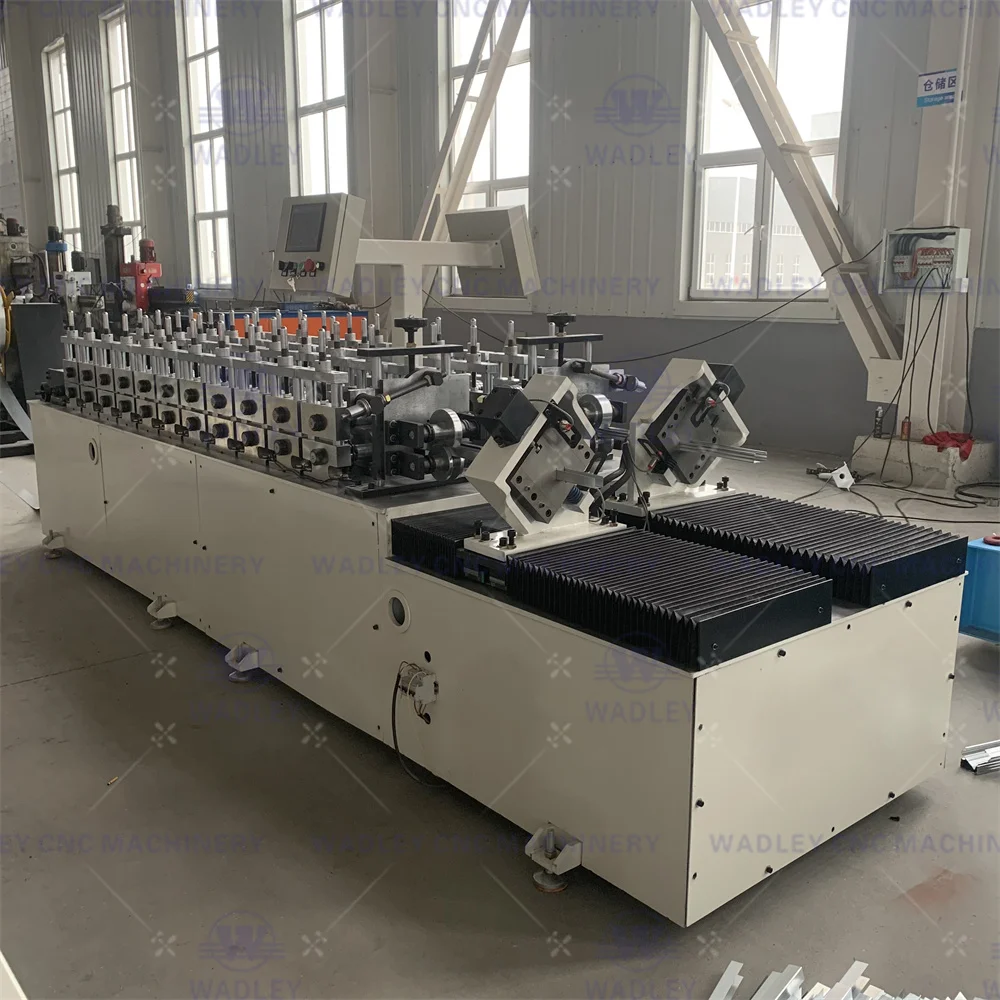

High Configuration C U Purlin Roll Forming Machine
Full-automatic C U Purlin Roll Forming Machine,it is our company most popular products in building materials machine. For roof sheet,it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.
Description
High Configuration C U Purlin Roll Forming Machine
When you choose C U purlin roll forming machine, you had better learn popular shape in local,also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time!
Product Details
- 1 Easy operate, full auto.
- 2 Adopting advanced world famous brand components in electric parts operation part.
- 3 High speed, non stop tracking cutting.
- 4 High precision, making finished sheet in good appearance.
- 5 Long life time.
Parameter
| No | Item | Data |
| 1 | Raw material width | 600-800 mm |
| 2 | Sheet effective width | 300-500 mm |
| 3 | Raw material | Color steel sheet or galvanized steel sheet |
| 4 | Material thickness | 4-6 mm or customized |
| 5 | Forming machine configuration | 90 axes, 16 rows of forming |
| 6 | Frame Type | CNC milling machine frame |
| 7 | Forming roll station | 8-16 steps |
| 8 | Drive motor | 37KW |
| 9 | Hydraulic power pack | 15 KW/3-valve |
| 10 | Control system | PLC control |
| 11 | Thickness of the middle plate | 30mm |
| 12 | Chain | 2 inches |
| 13 | Length of the electric feeding table | 4 meters |
| 14 | Length of the magnetic suction stacker machine | 4 meters |
| 15 | Punching dies | 2 sets |
| 16 | Gear box | Framing gear box |
| 17 | Uncoiler | 5-ton hydraulic uncoiler with pressure arm |
| 18 | Leveling machine | 6mm 500mm wide heavy-duty |
