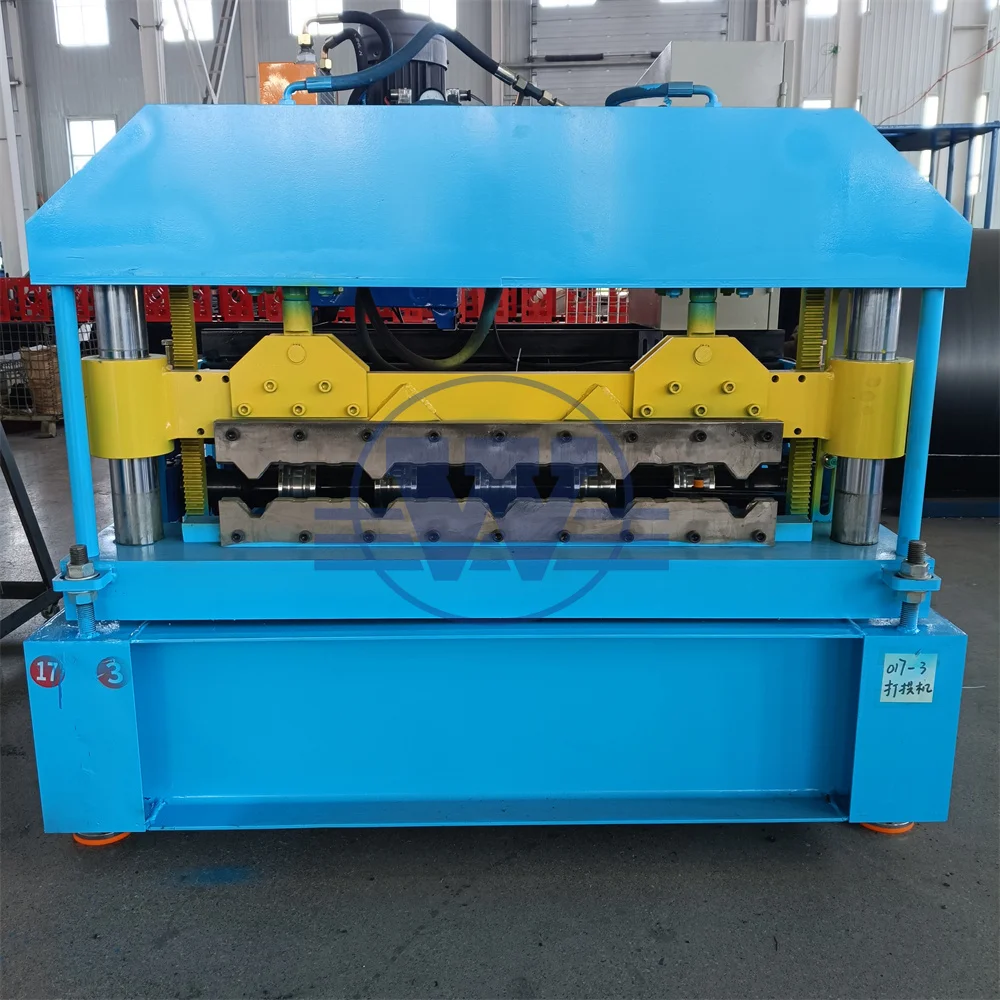

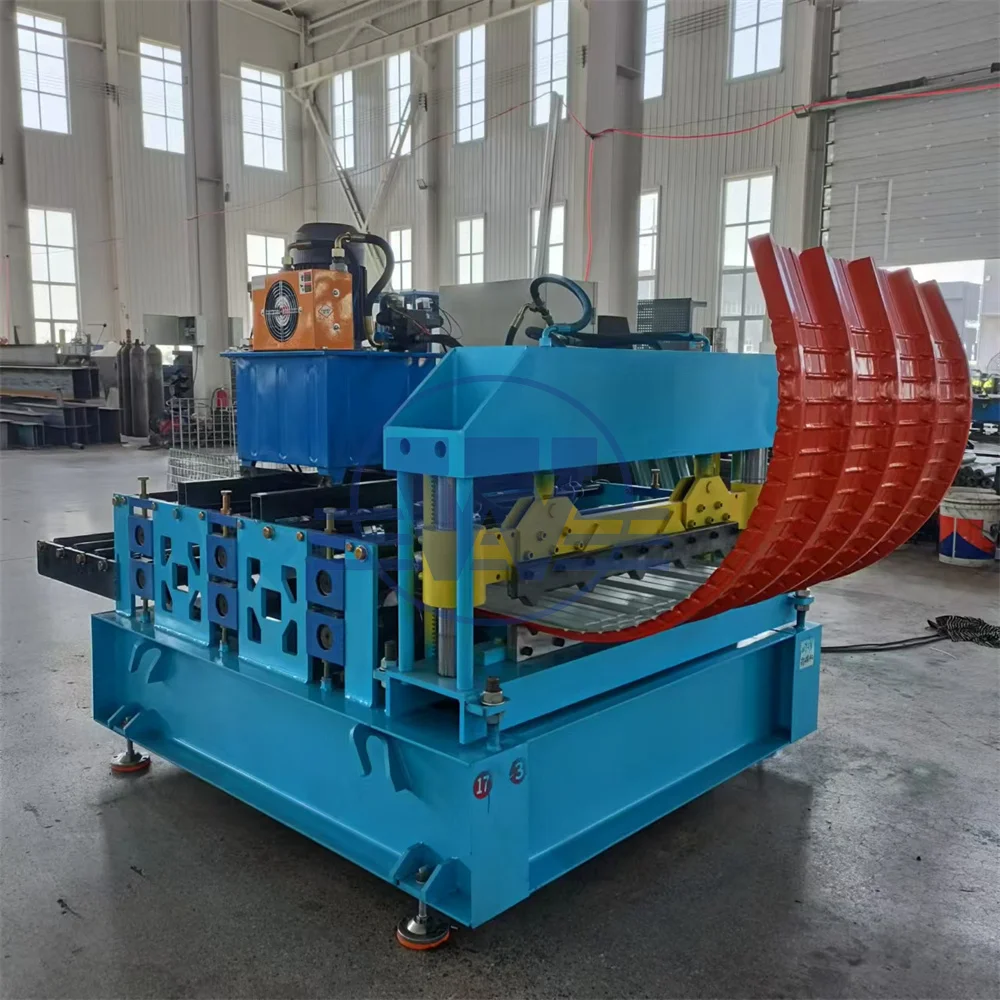

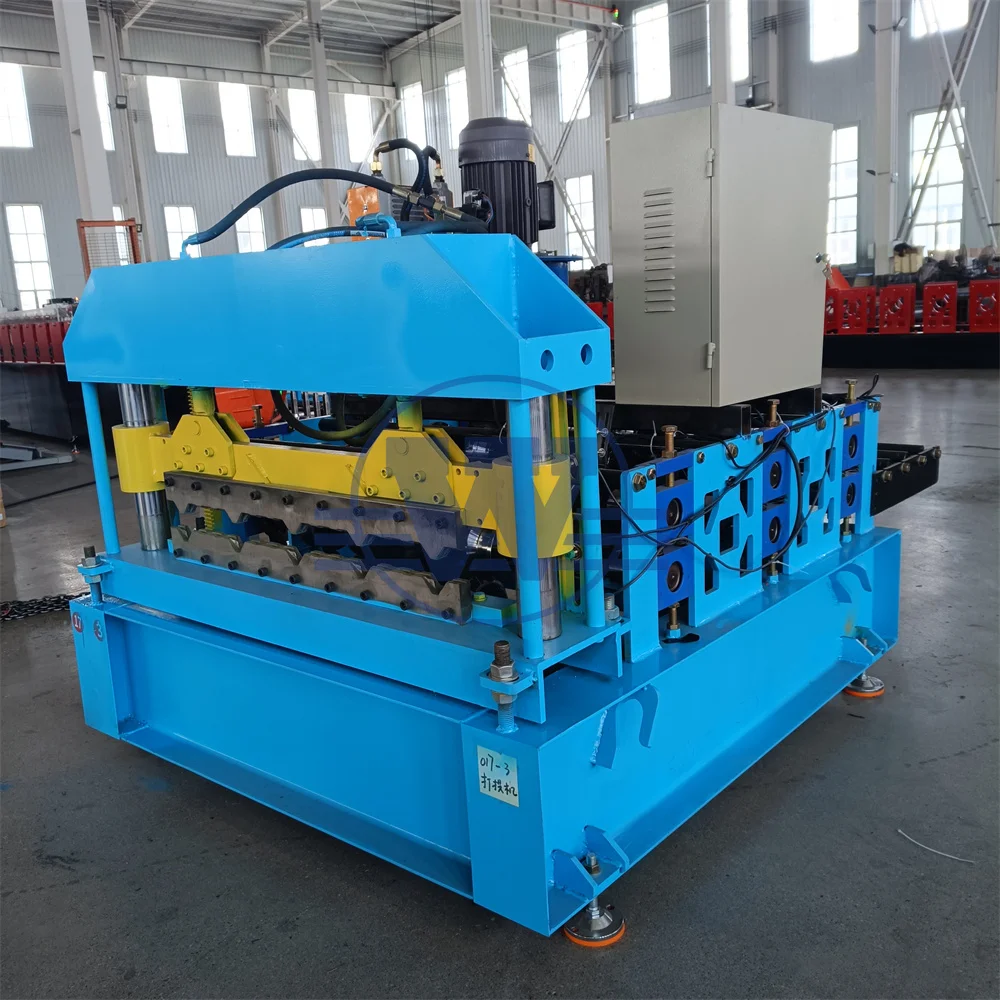

Horizontal hydraulic arch machine

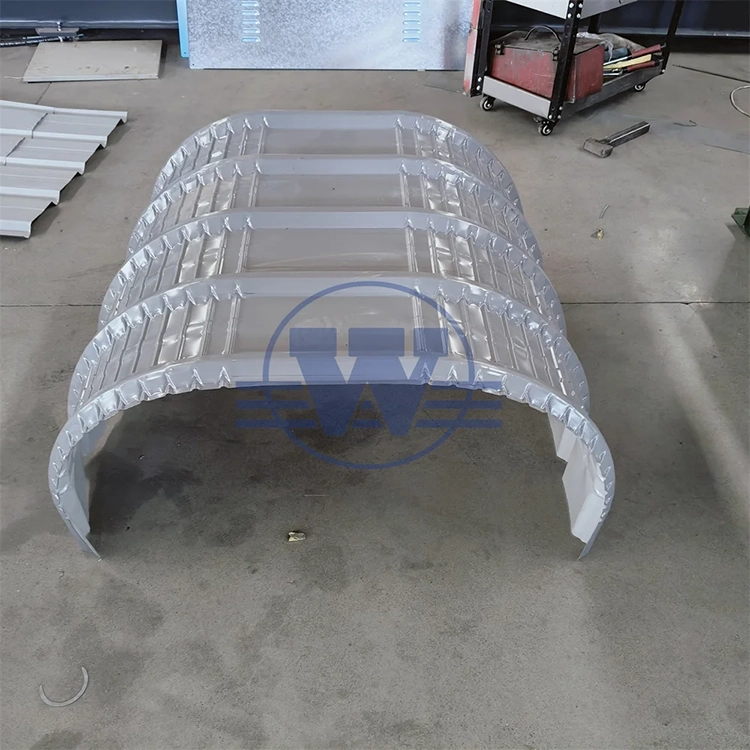

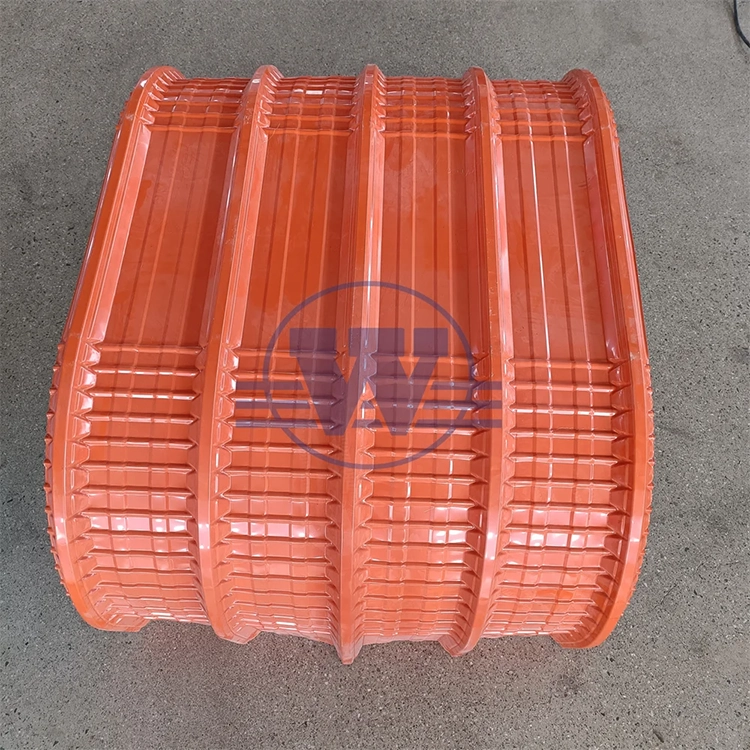

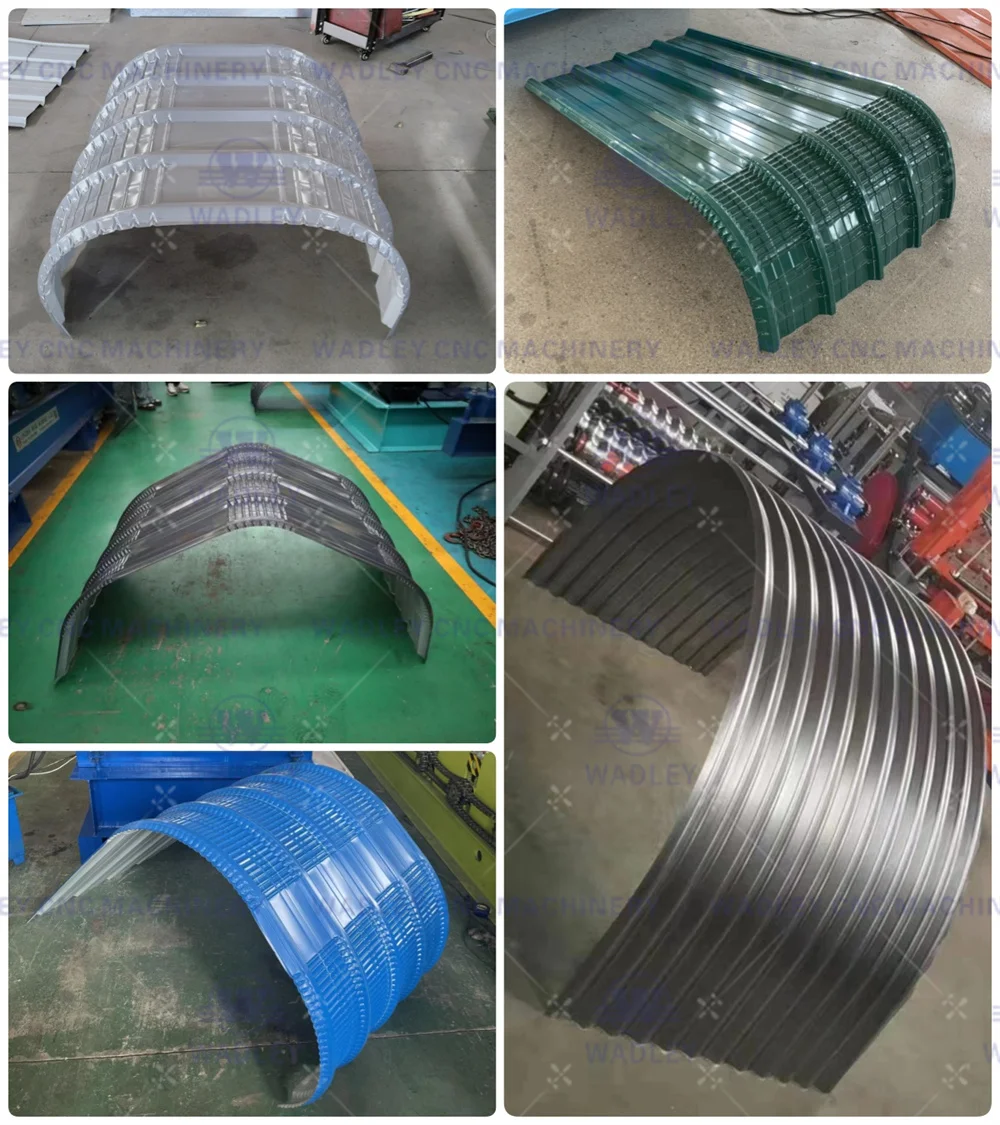

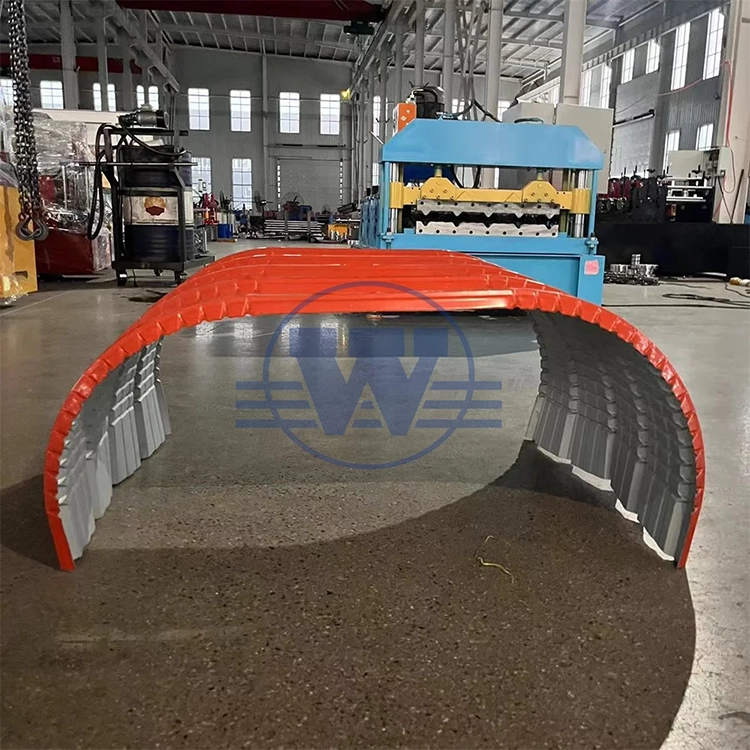

Horizontal hydraulic arch machine is to use a vehicle-mounted mobile construction machine to cold-bend the color coated steel plate into a trough-shaped straight plate, then roll and crimp it into a trough-shaped single-arch panel with a trapezoidal section, and then use a sealing machine in turn A new structural form of light steel roof in which the slabs are spliced into a whole. The products produced by the tooth-shaped corrugated board arching machine have the characteristics of light weight, high strength, heavy bearing capacity and good seismic resistance. The tile press is widely used in the field of multi-high-rise steel structure buildings.
Description
Horizontal hydraulic arch machine
Horizontal hydraulic arch machine is to use a vehicle-mounted mobile construction machine to cold-bend the color coated steel plate into a trough-shaped straight plate, then roll and crimp it into a trough-shaped single-arch panel with a trapezoidal section, and then use a sealing machine in turn A new structural form of light steel roof in which the slabs are spliced into a whole. The products produced by the tooth-shaped corrugated board arching machine have the characteristics of light weight, high strength, heavy bearing capacity and good seismic resistance. The tile press is widely used in the field of multi-high-rise steel structure buildings.
Product Details
Parameter
| The frame | Steel welding |
| Material | Galvanized sheet |
| Material thickness | 0.3-0.6mm |
| Feeding width | 1220mm |

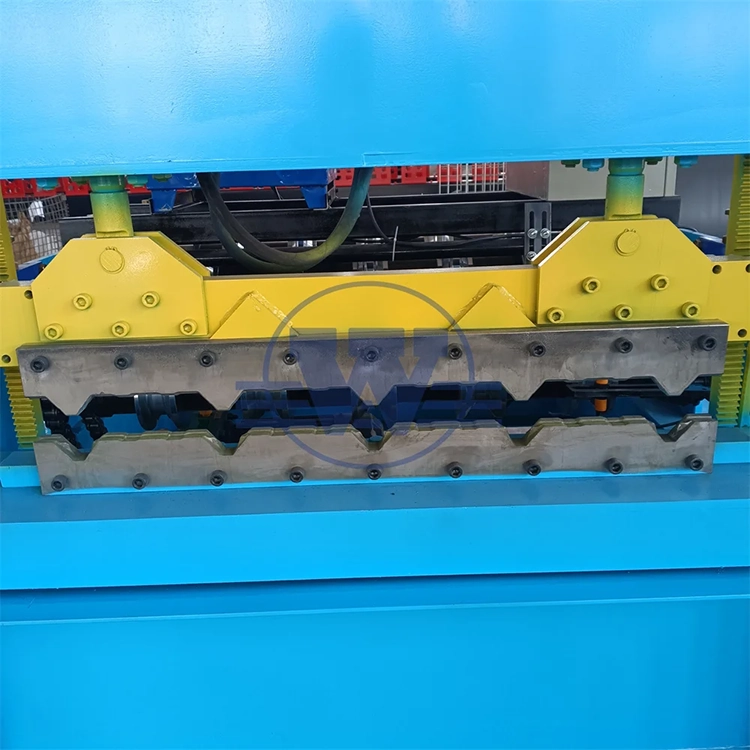

| Material of forming mold | Cr 12 steel with quenched treated 60-62℃ |
| Main oil pump press | 32mpa |
| Feeding equipment | 1, Turbine worm reducer NMRV050 |
| 2, Rack driving | |
| 3, DC motor: calculates arc length automatically | |

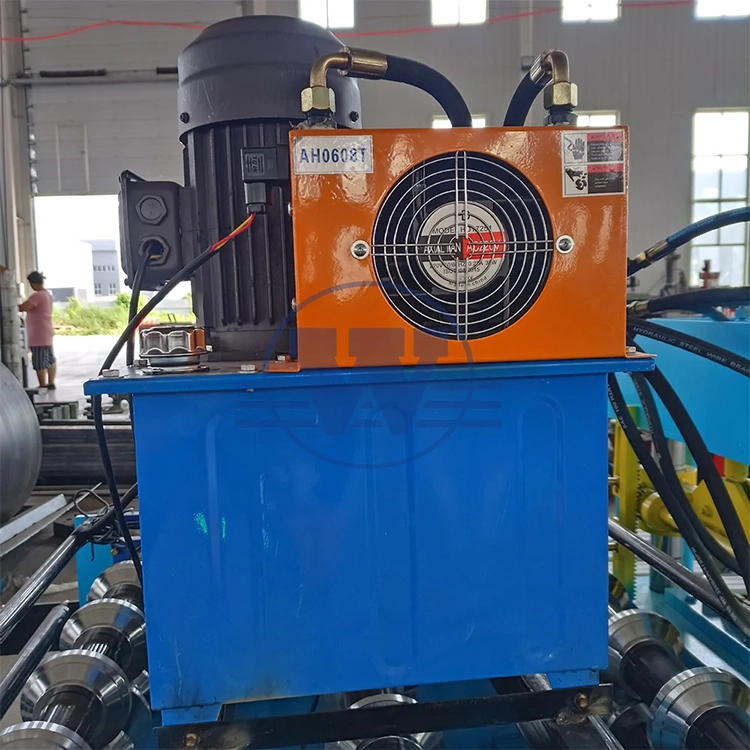

| Hydraulic system | 1) Advanced hydraulic system from Taiwan |
| 2) Power: 5.5kw | |
| Automatic Control system | 1) Screen: 5.7 inch DELTA screen from Taiwan |
| 2) PLC: DELTA from Taiwan | |
| 3) Coder: ENC-1-1-1T-24 from South Korea | |
| Voltage | 380v 50hz 3-phase or can be customized |
