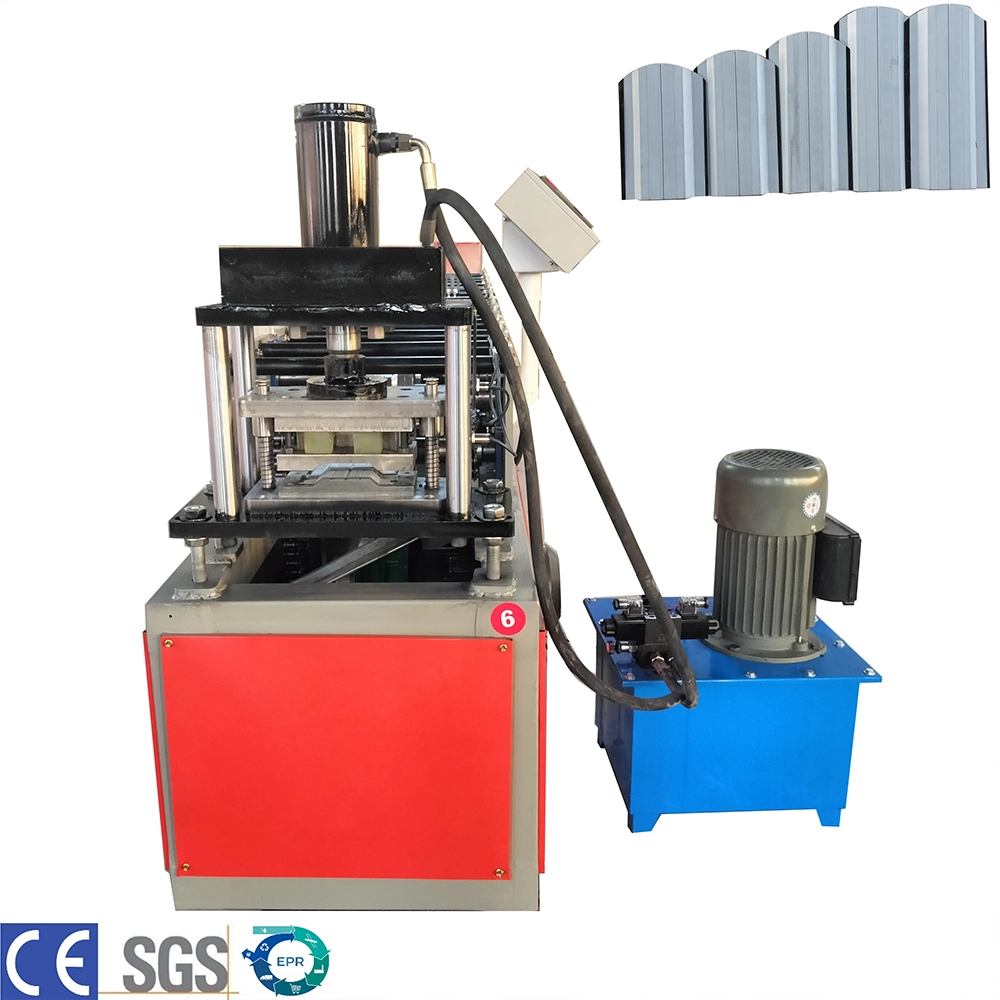

Metal Fence Roll Forming Machine
Metal Fence Column Product rolling forming machine is designed to make the peach Shape Post, metal fence post in batch fully automatically.Peach shaped column fence is a new product. It is popular in developed countries such as the US, Japan and Korea, and has big features. It is beautiful, generous, limited by terrain and easy to install.
Description

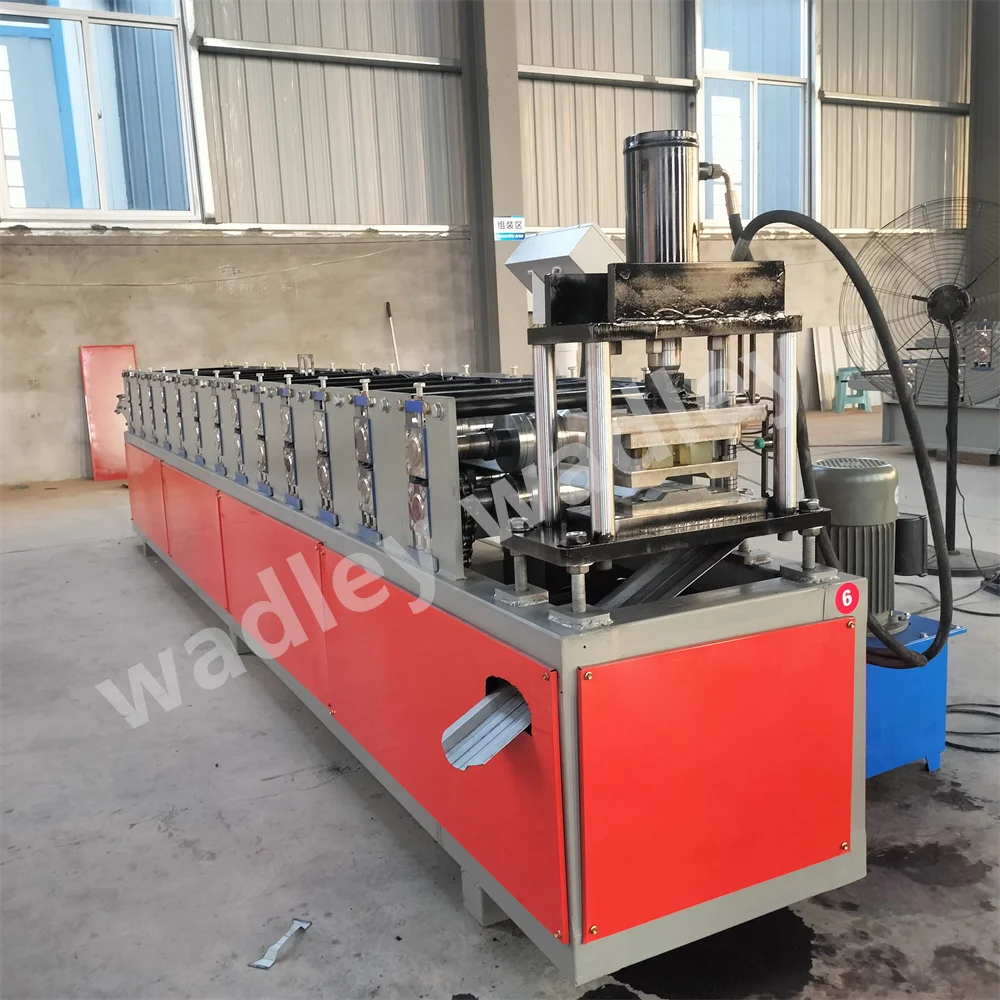

The Metal Fence Roll Forming Machine

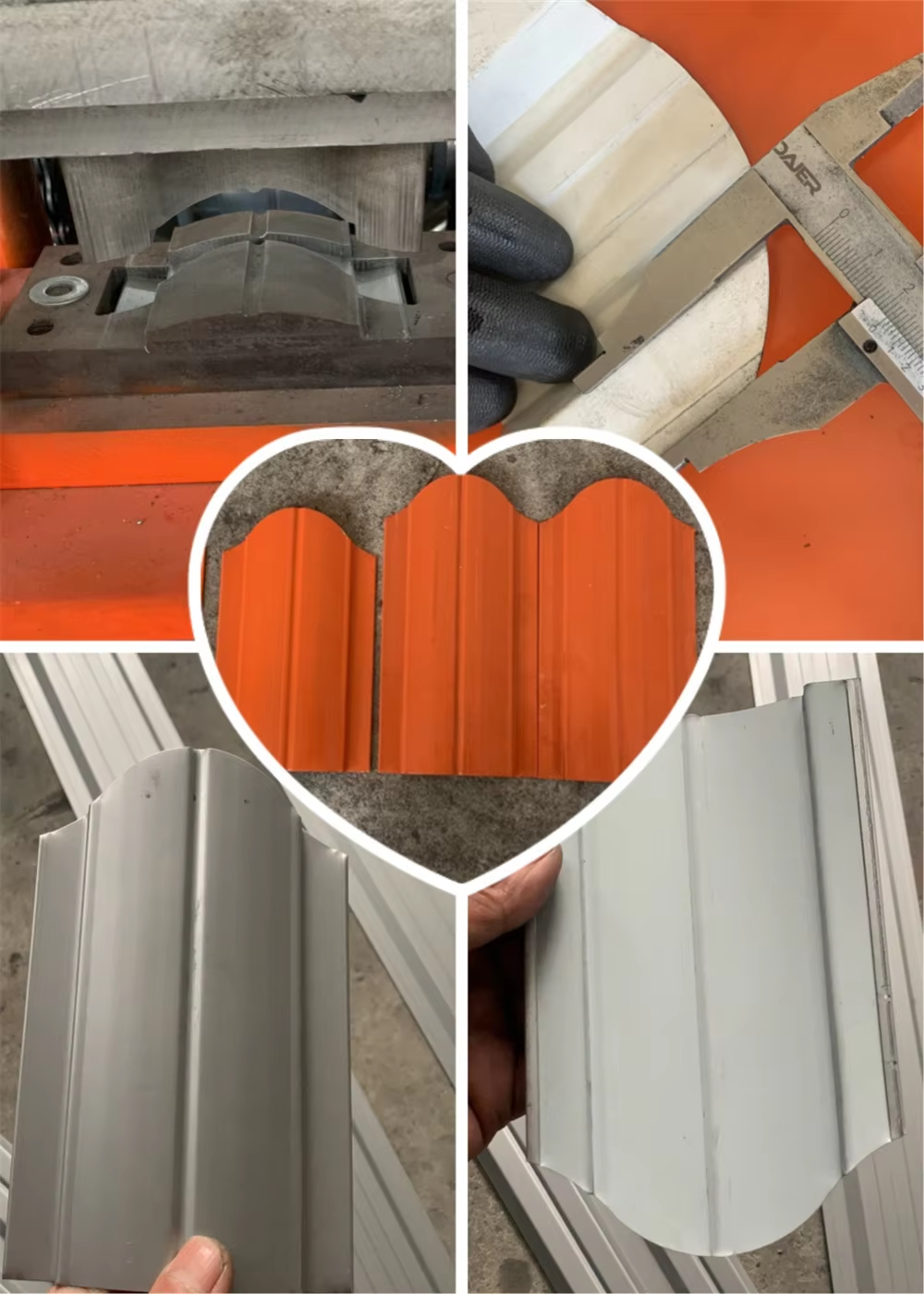

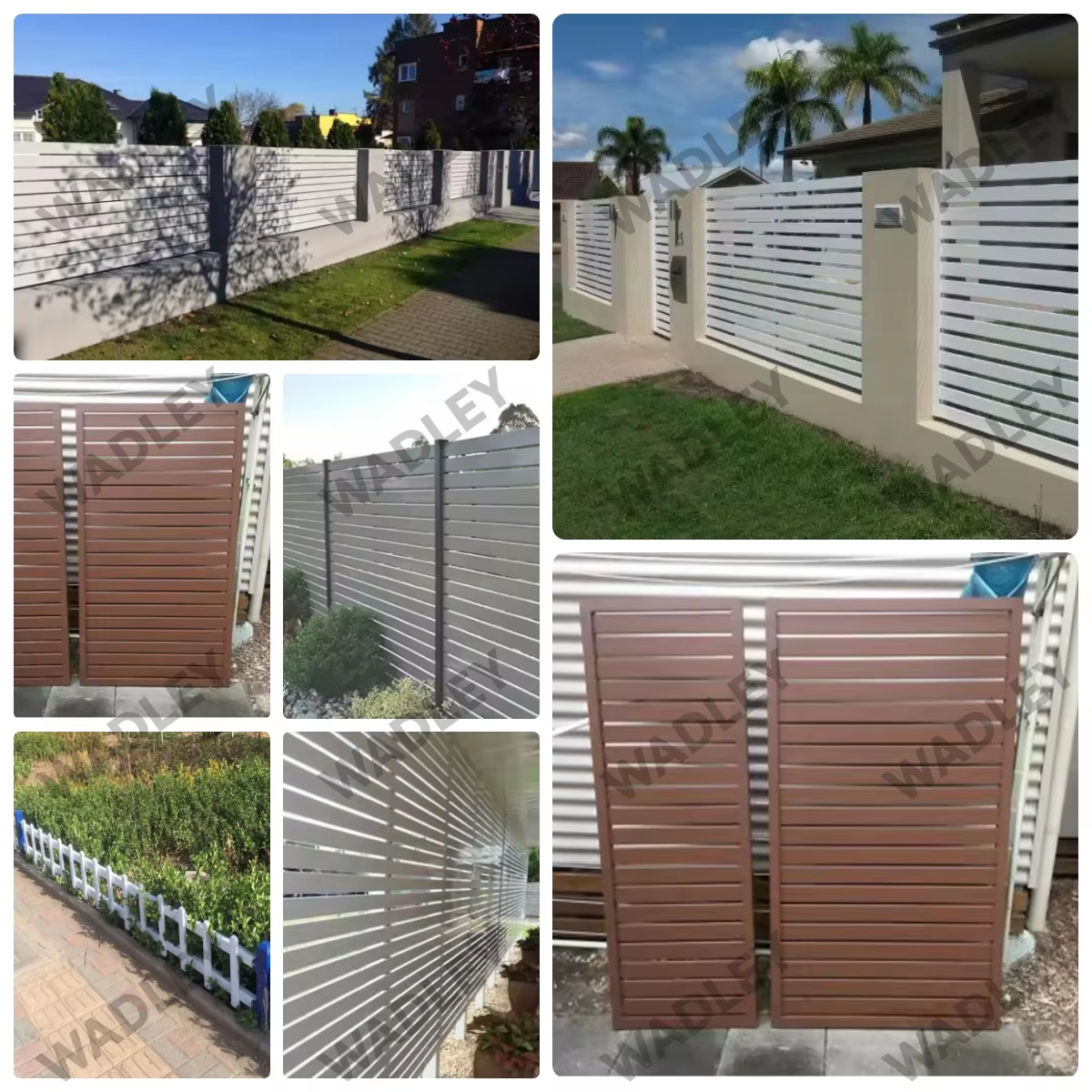

Metal Fence Column Product rolling forming machine is designed to make the peach Shape Post, metal fence post in batch fully automatically.Peach shaped column fence is a new product. It is popular in developed countries such as the US, Japan and Korea, and has big features. It is beautiful, generous, limited by terrain and easy to install. It adopts high quality processing technology, and the surface of galvanized steel is treated with high adhesion and spray. At any height of the column, inserting the mesh into the predesigned grooves is a while that can not be disassembled by the fence. Fast propulsion installation, no need for any accessories for various types.
Product Details
Parameter
| item | value |
| Type | Metal Fence Roll Forming Machine |
| Use | Metal Fence |
| Production Capacity | 20M/MIN |
| Voltage | 380v/220V/415V |
| Rolling thinckness | 0.3-0.8mm |
| Feeding width | 330 |
| Raw material | Steel Coil GI PPGI |

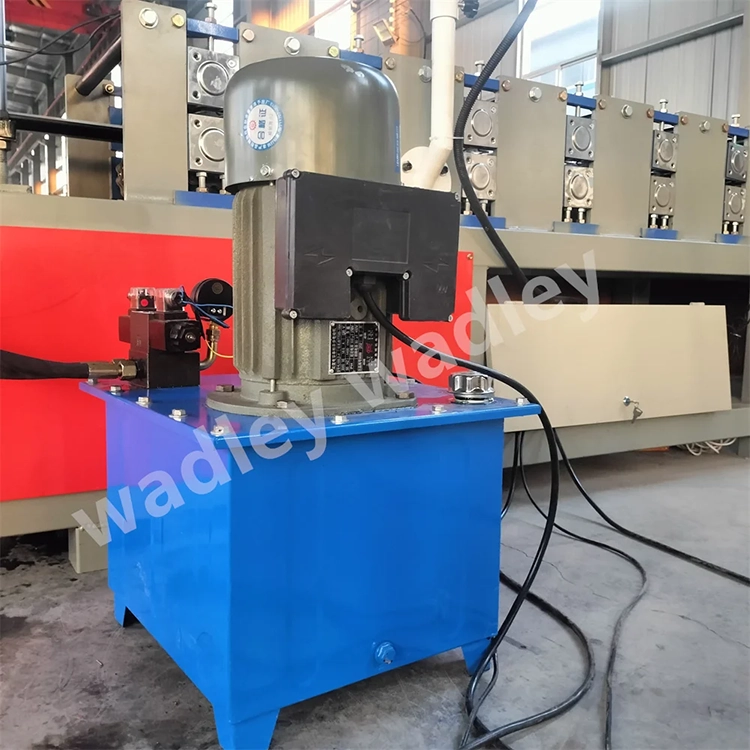

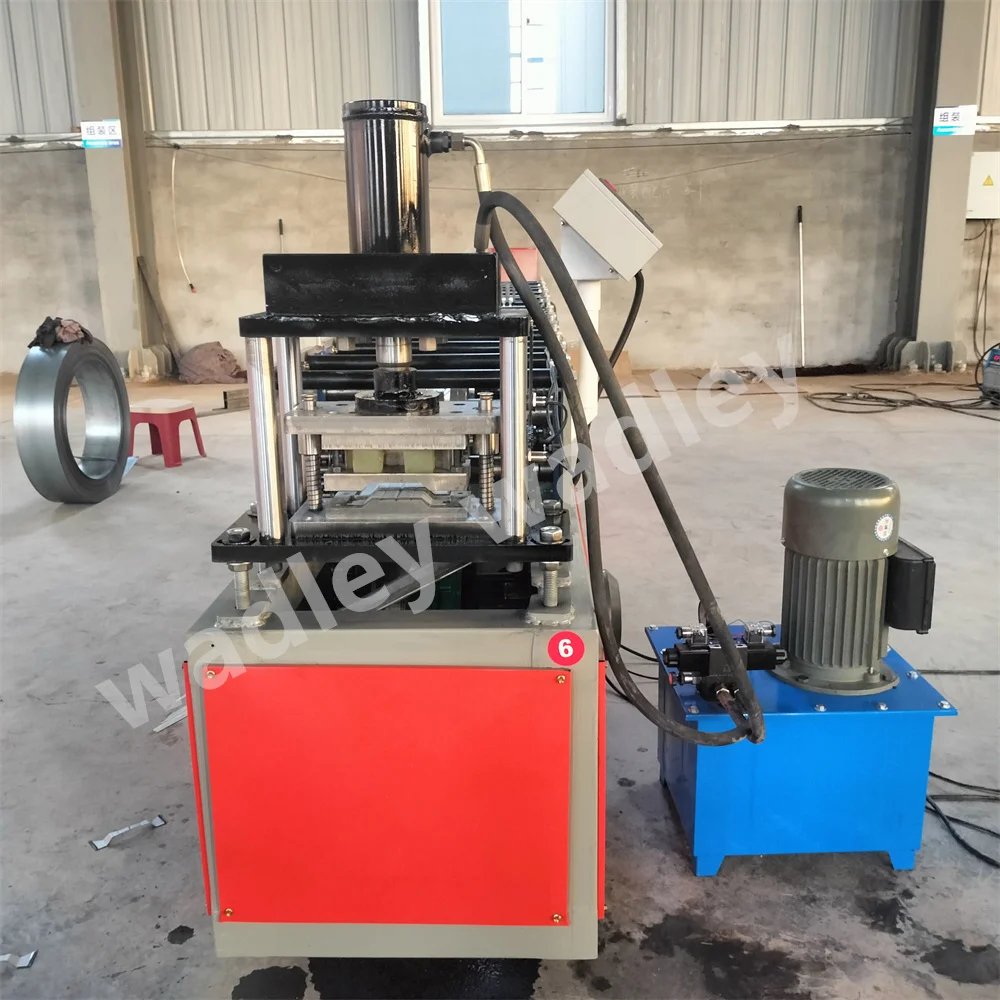

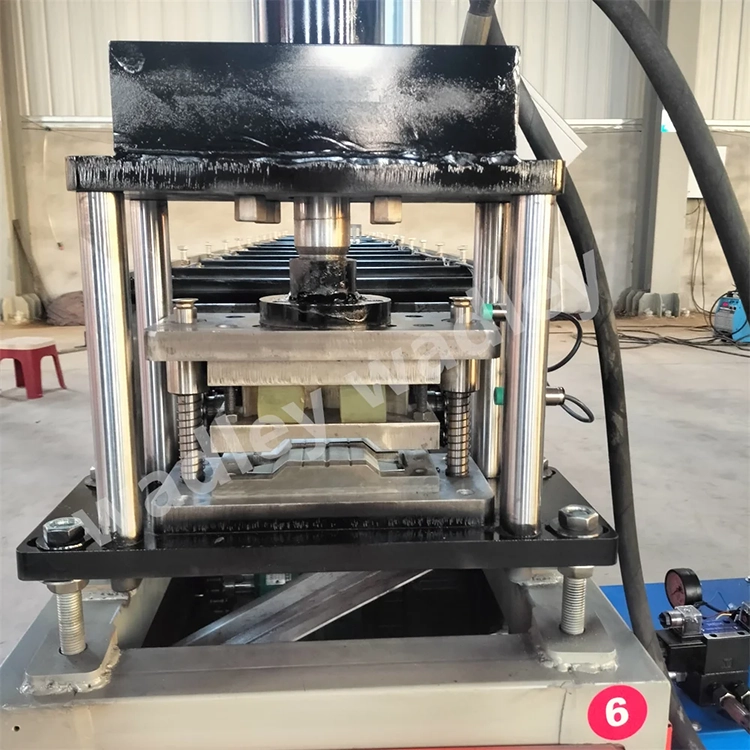

| Cutting | Hydraulic Guide Pillar |

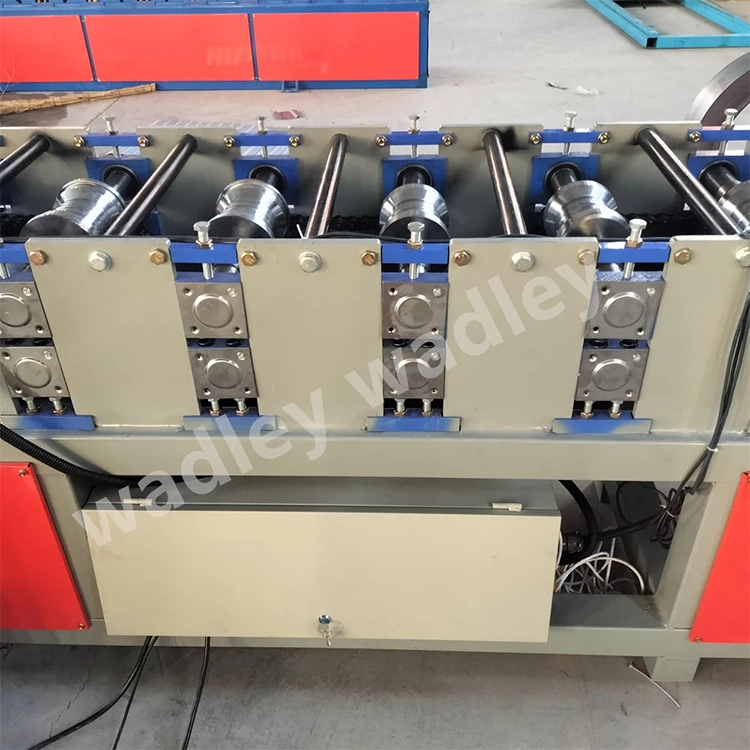

| Roller material | Cr12Mov |
| Shaft material | 45# steel |
| Shaft diameter | 80MM |
| Motor | 7.5KW |
| Machine frame | 300H beam |
| Frame thickness | 16mm, middle plate frame |
| Forming Speed | 8-15m/min |
| Dimension(L*W*H) | 5800x900X1500 |
| Weight | 1800kg |
