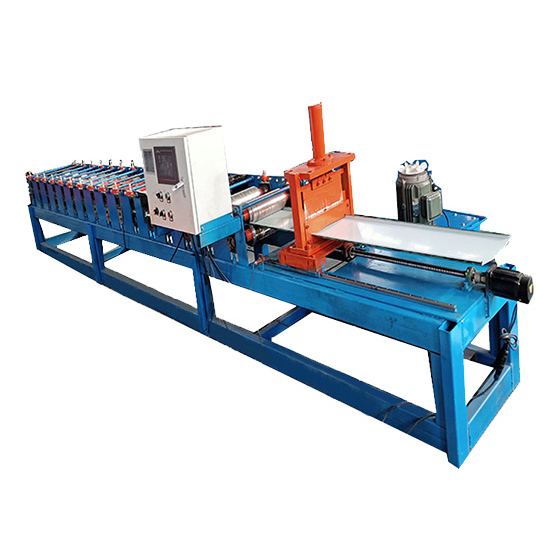

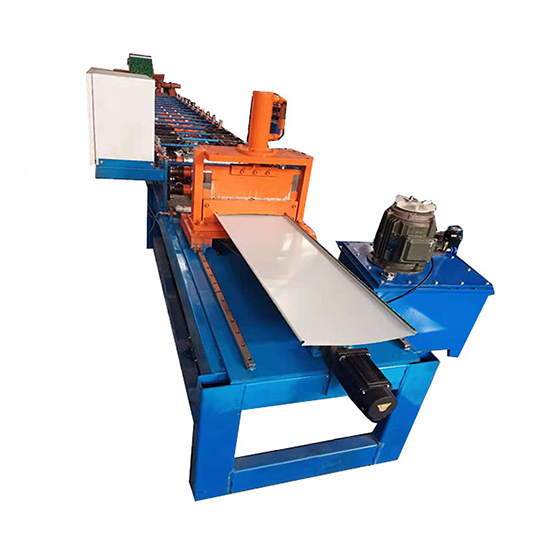

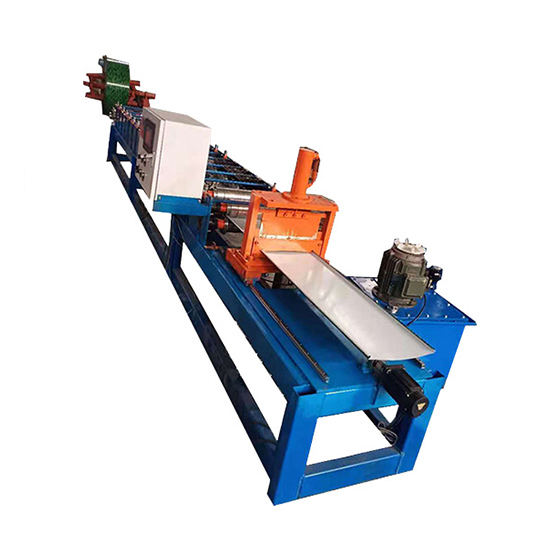

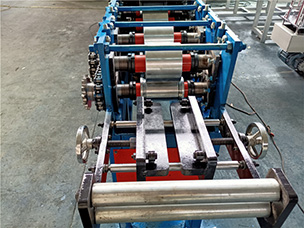

Municipal Guard Roll Forming Machine

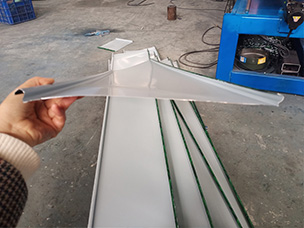

Fence Panel Cold Forming Machine is easy to install, used together with different colors can make it appear dye-in-the-wood individual character. Width of 75, 100, 150, 200, and 300 C-shaped keel can be assembled arbitrarily, and they are connected tightly. They can be fixed on the device which is specially used for keels, they can tear down individually.
Description

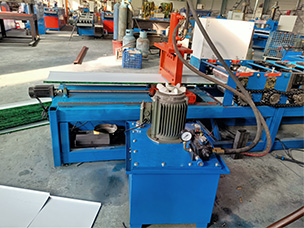

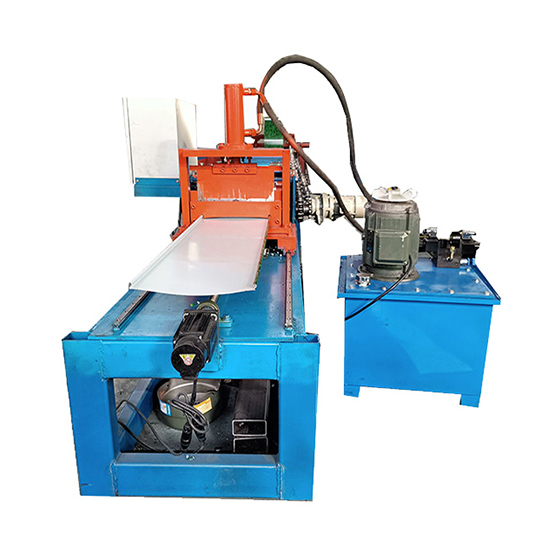

Fence Panel Cold Forming Machine is easy to install, used together with different colors can make it appear dye-in-the-wood individual character. Width of 75, 100, 150, 200, and 300 C-shaped keel can be assembled arbitrarily, and they are connected tightly. They can be fixed on the device which is specially used for keels, they can tear down individually.Color Steel Fence Panel Cold Forming Machine Hydraulic system:It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.
We have an outstanding export team who will take your requests. The design team will prepare the perfect products as per your specific requirements.
Product Details
Parameter
|
No |
Item |
Description |
|
1 |
Suitable Material |
Color steel/Galvanized steel |
|
2 |
Input Width |
1000mm |
|
3 |
Effective width |
Will be reconfirmed before produce |
|
4 |
Material Thickness |
0.3-0.5mm |
|
5 |
Forming speed |
0-15m/min |
|
6 |

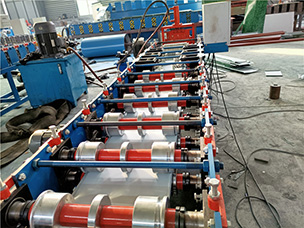

Roller Stations |
profile 17 rows |
|
7 |
Frame |
300H steel |
|
8 |
Middle plate |
14mm |
|
9 |
Spacer |
seamless steel tube processing |
|
10 |
Material of Roller |
45# steel forged |
|
11 |
Material of Shaft |
70mm, 45#steel forged |
|
12 |
Driven Motor Power |
3kw |
|
13 |
Hydraulic Station Power |
3kw |
|
14 |
Oil Pump |
Gear pump |
|
15 |
Driving Mode |
single chain 1 inch |
|
16 |

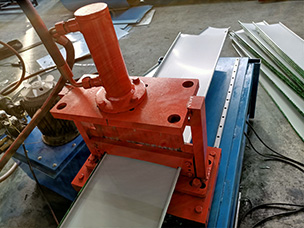

Material of Cutter |
Cr12 |
|
17 |
Heat treatment |
HRC58-60℃ |
|
18 |
Power Supply |
380V, 60HZ, 3 phase ( Can be customized) |
|
19 |
Weight |
3500kgs |
|
20 |
Dimension |
4.5m *1.5m *1.3m |
