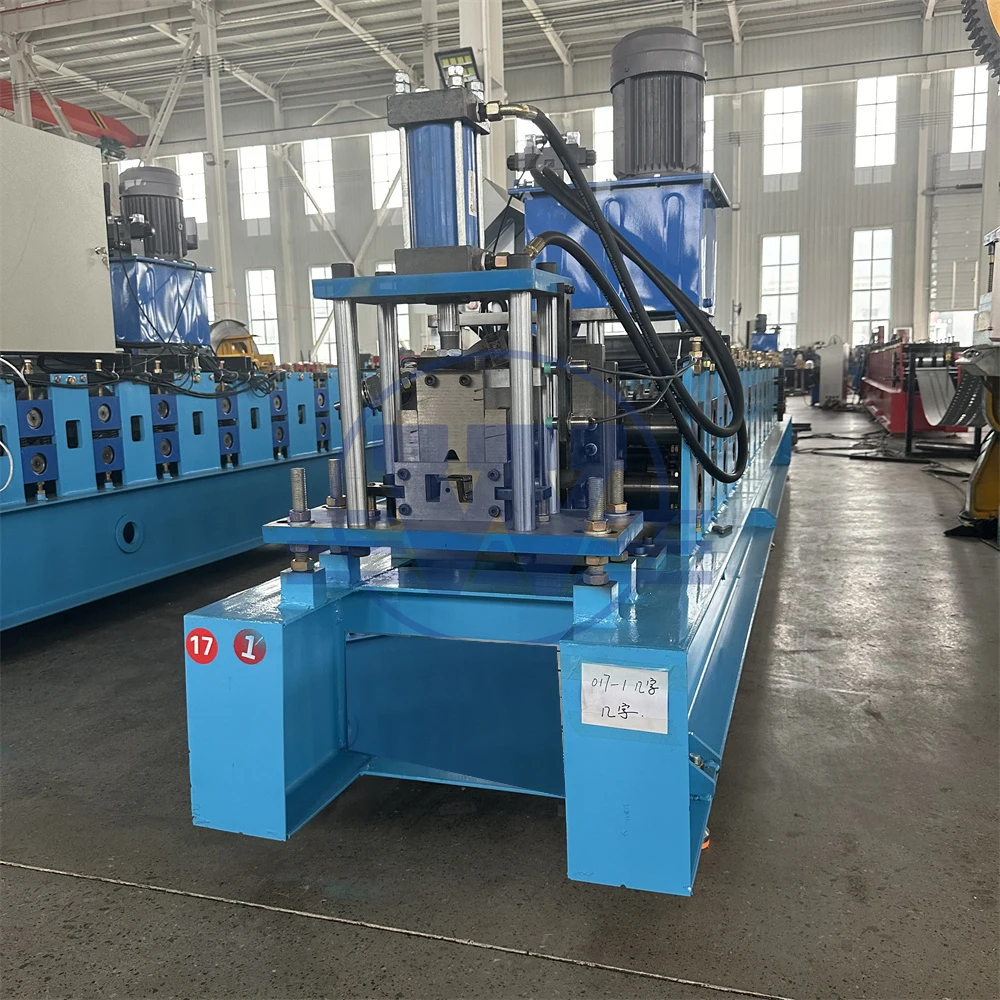

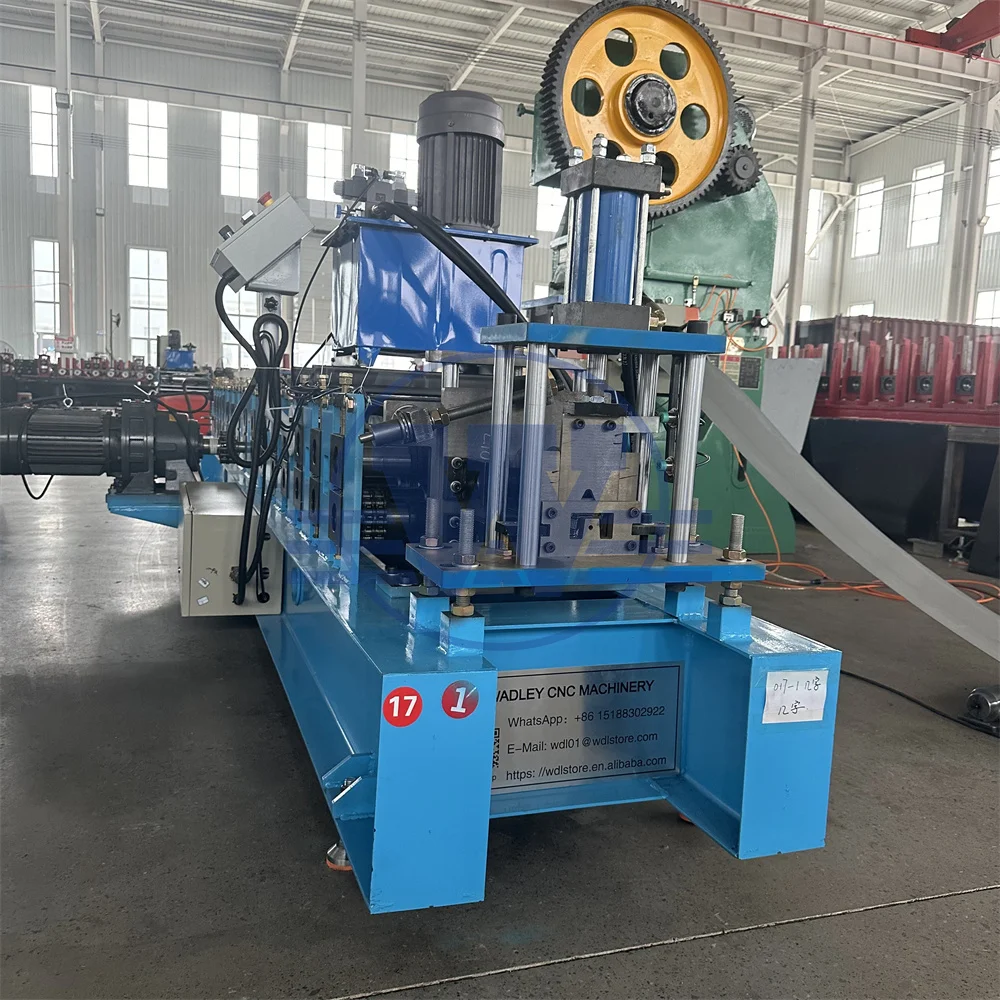

Omega Shape Purlin Roll Forming Machine

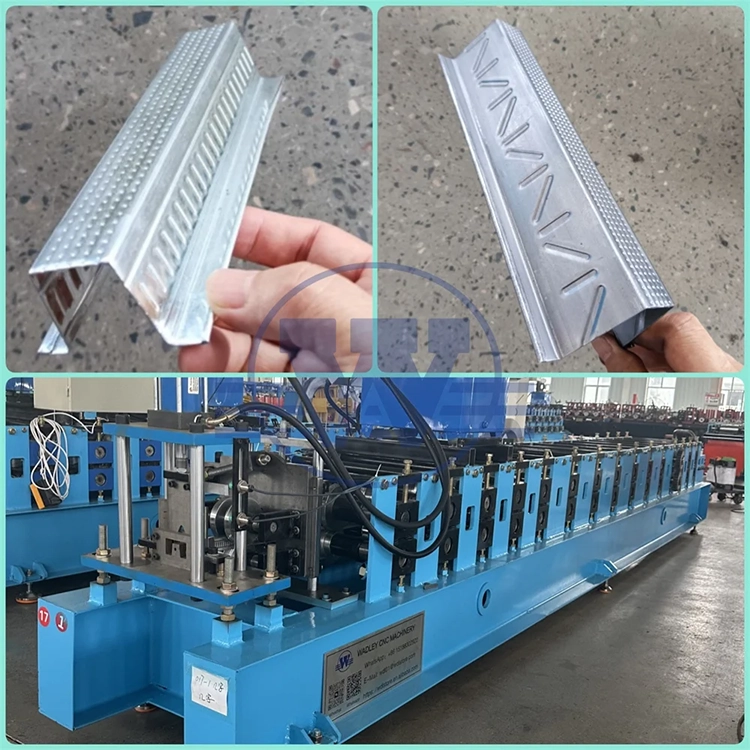

Metal furring channel roll forming machine is for make the omega type stud and track,which usually used in the roof system and ceiling system.Our machine provide customized,with the function high quality long service time.

Send Email Get A Quote

Description Product Details Parameter Inquiry

Description

The Omega Shape Purlin Roll Forming Machine

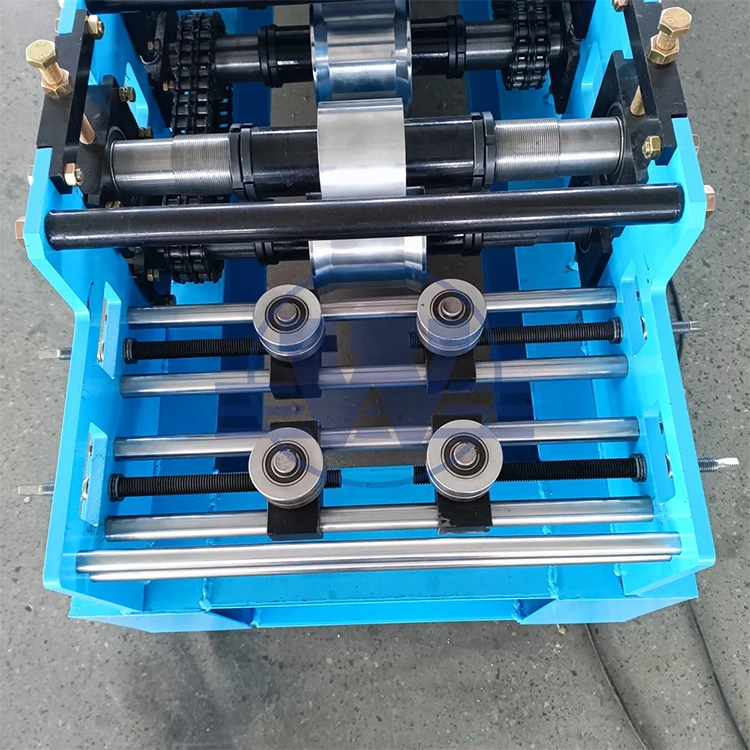

The omega type stud and track roll forming machine is composed of feeding, forming, and post-forming cutting. The plate produced has a flat and beautiful appearance, high strength, and durability. It is widely used in industrial and civil buildings, such as factories, warehouses, gymnasiums, exhibition halls, theaters, etc. House surfaces and walls.

Product Details

1 Easy operate, full auto.
2 Adopting advanced world famous brand components in electric parts operation part.
3 High speed, non stop tracking cutting.

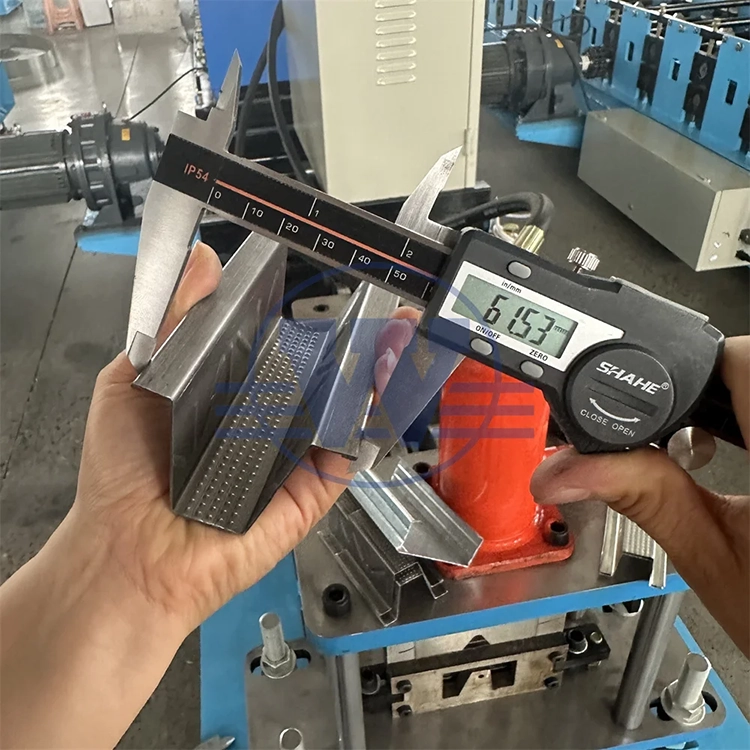

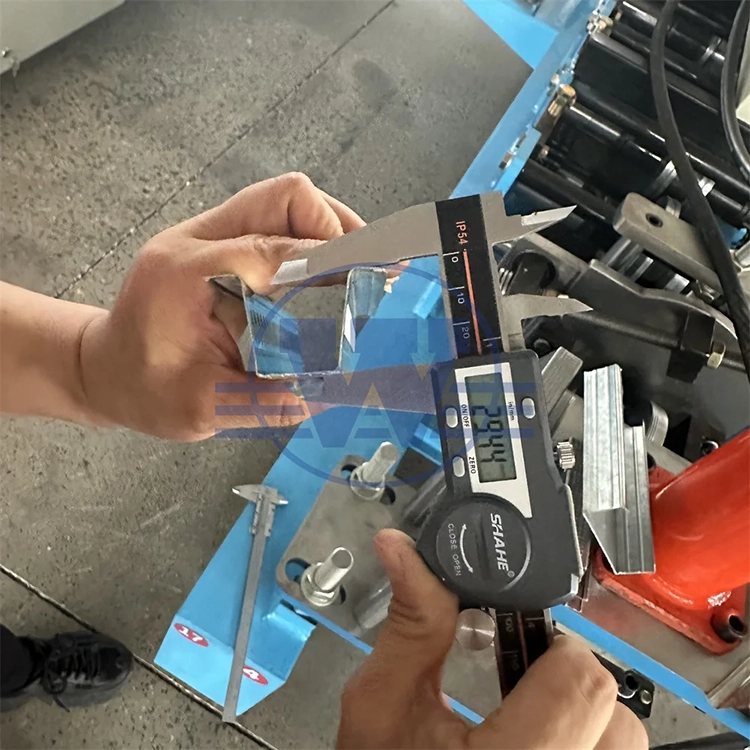

4 High precision, making finished sheet in good appearance.
5 Long life time.

Parameter

1.Formed Material	PPGI,GI,AI	Thickness:0.5-1.2mm
2.Decoiler	Hydraulic automatic decoiler	Manual decoiler(will give you as free）

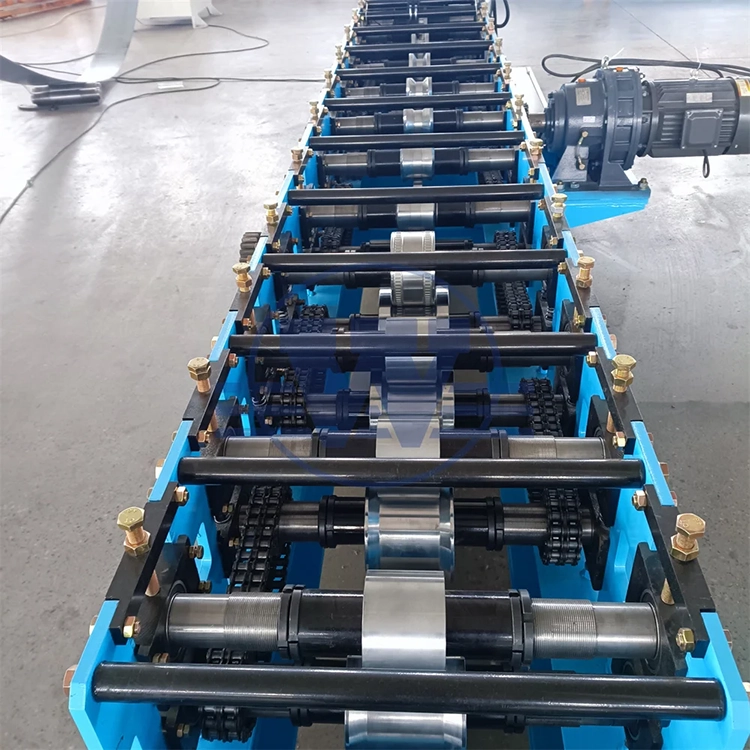

3.Main body	Roller station	12 rows(As your requirement)
	Diameter of shaft	50mm solid shaft
	Material of rollers	45# steel, hard chrome plated on the surface
	Machine body frame	Metal steel welded
	Drive	gearbox transmission
	Dimension(LWH)	55008001200(customize)
	Weight	About 3T
4.Cutter	Automatic	cr12mov material, no scratches, no deformation
5.Power	Motor Power	7.5KW
	Hydraulic system power	5.5KW
6.Voltage	380V 50Hz 3Phase	As your requirement
7.Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	60-70m/min(customized)	The speed depends on the shape of the tile and the thickness of the material.
