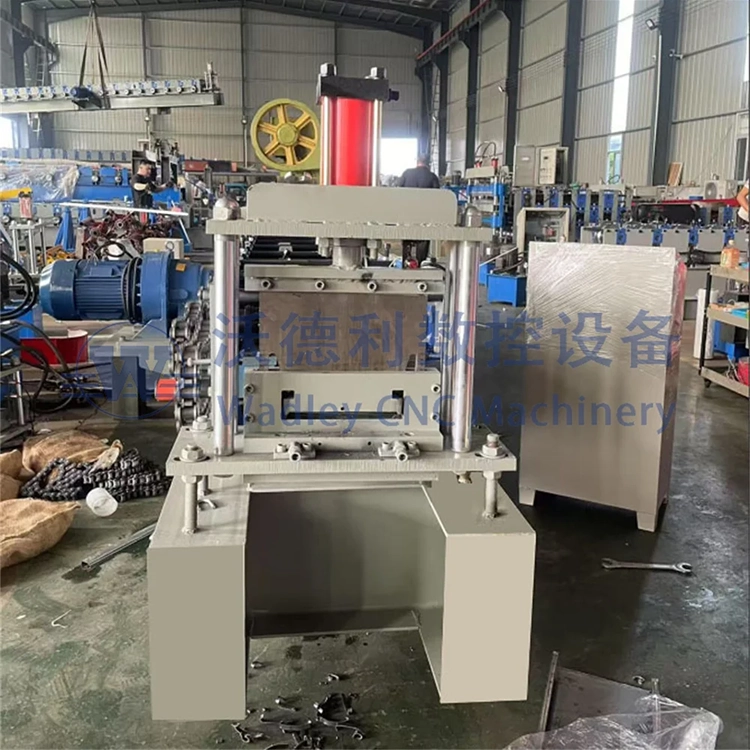

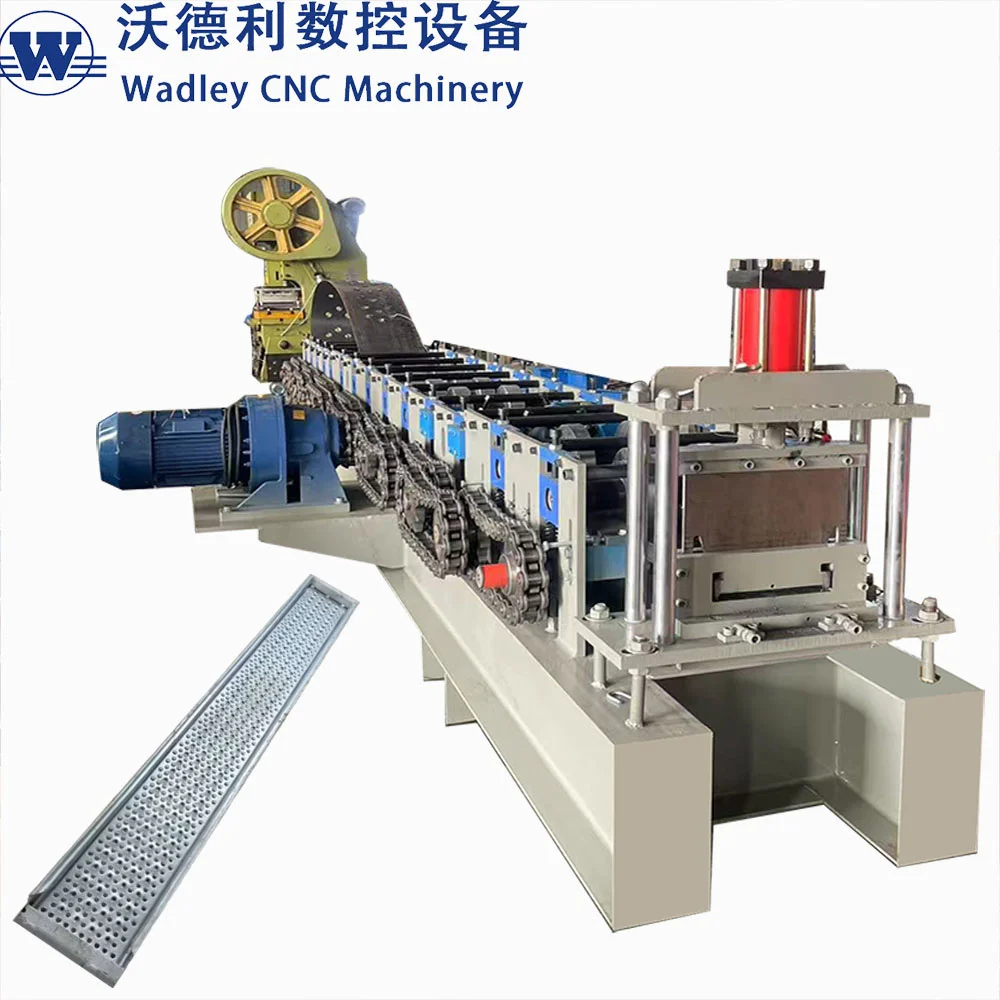

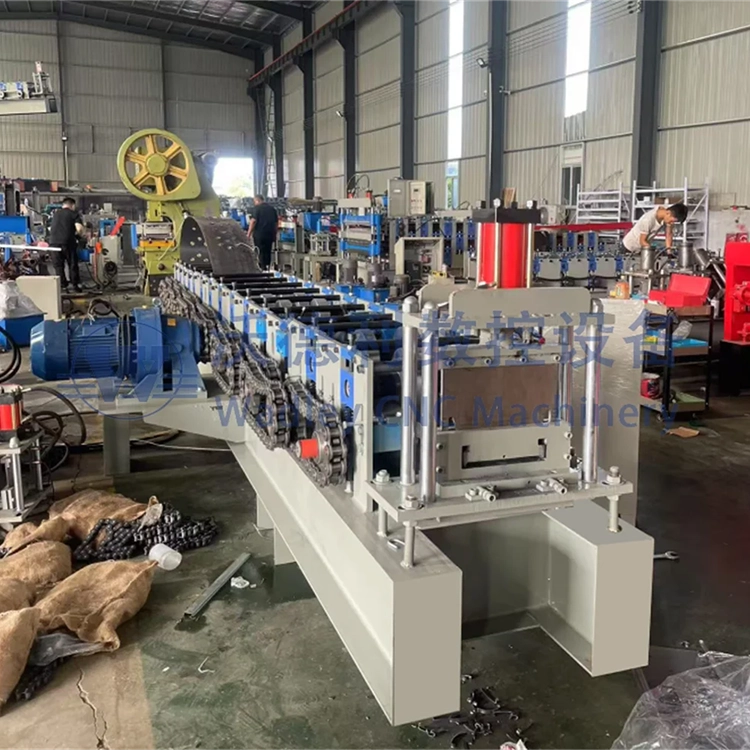

Scaffold Plank Roll Forming Machine
scaffolding roll forming machine is used in the production of scaffolding components, such as frames, braces, and other structural elements. The machine uses a process called roll forming, where metal sheets or coils are passed through a series of rollers that radually shape the material into the desired profile.
Description
Scaffold Plank Roll Forming Machine
scaffolding roll forming machine is used in the production of scaffolding components, such as frames, braces, and other structural elements. The machine uses a process called roll forming, where metal sheets or coils are passed through a series of rollers that radually shape the material into the desired profile. This is an efficient and cost-effective method for mass production of standardized scaffolding components, which are crucial for building construction and maintenance.
The scaffolding walk board forming machine is non-standard customized machine. It can produce several different types of scaffolding walk board such as marine usage, onstruction usages. and non-slip types.
Product Details
Parameter
| Scaffold Roll Forming Machine | |
| Raw materials | galvanized sheet, mild steel, etc |
| Roll Forming stands | 16-18 Rollers station |
| Punch Speed | 15-20/min adjustable |
| Thickness of feeding material | 10-15m/min |
| Maximum forming speed | 0.6-2MM |
| PLC brand | Sanjing ,Optional(Delta or Siemens ) |
| Machine Power | 11 KW |
| Forming rollers materials | GCr15 quenching treatment |
| Power supply | 380V 50Hz 3ph or your requirment |
| Machine color and Logo | ODM OEM |
Inquiry
Please Feel to give your inquiry in the form.We will reply you in 24 hours.
