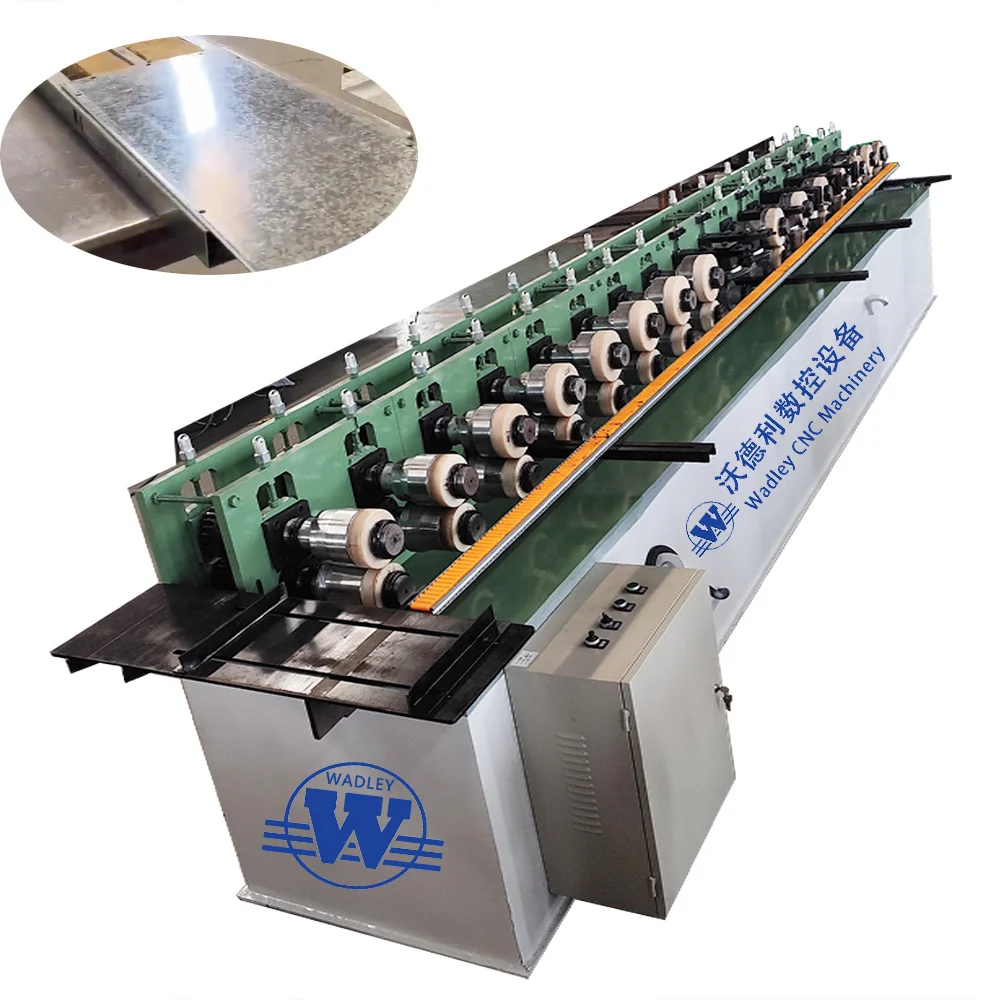

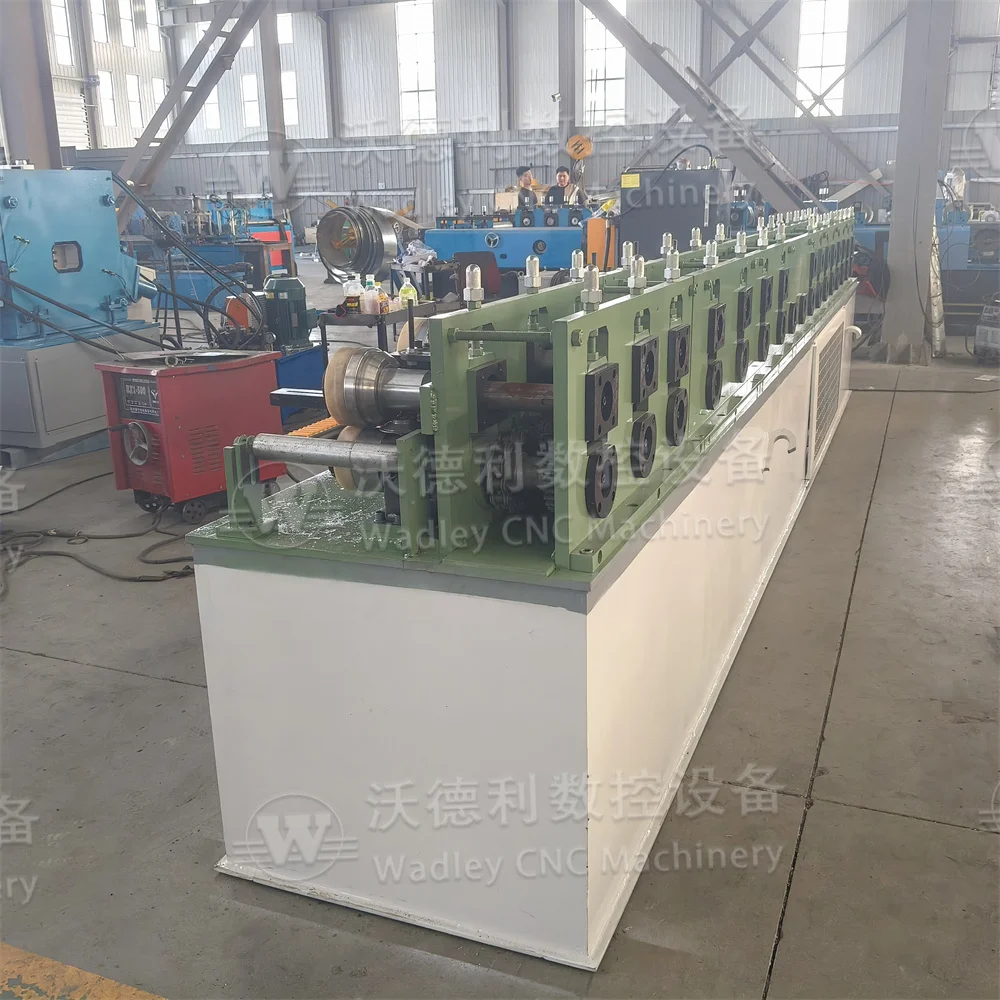

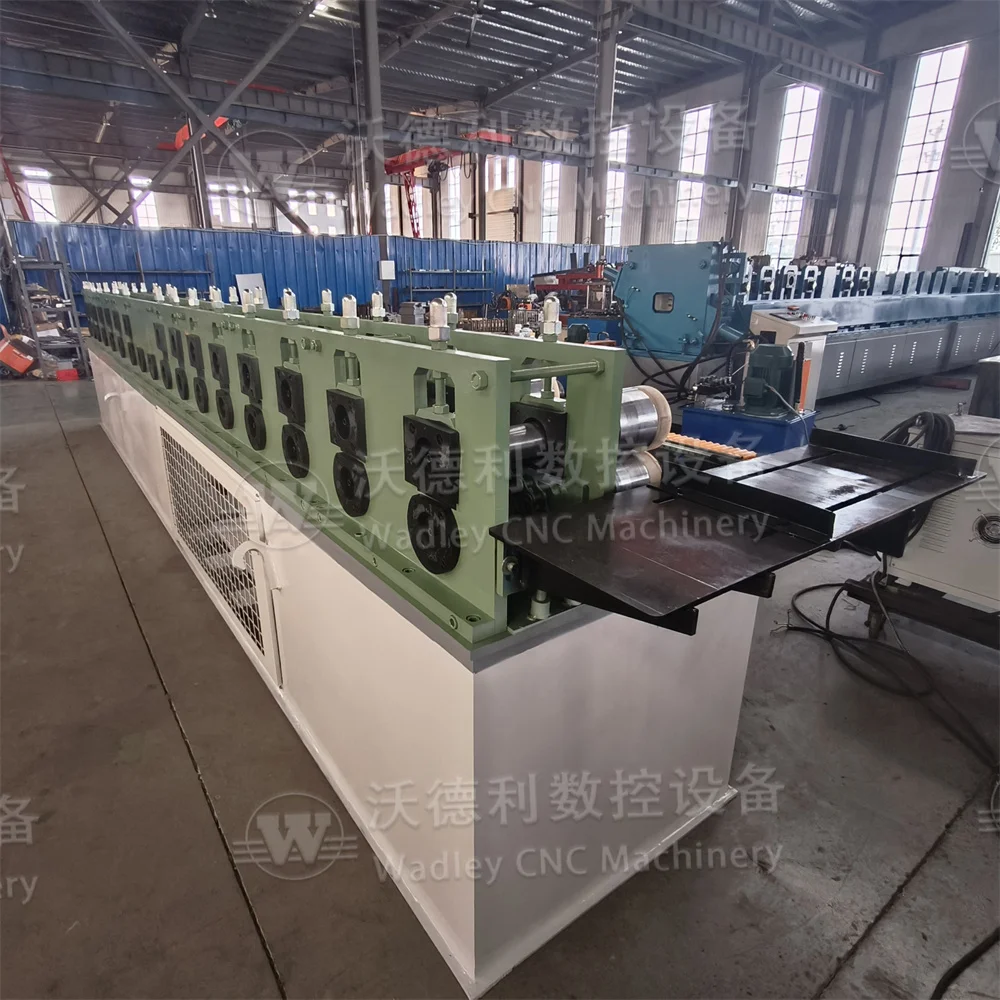

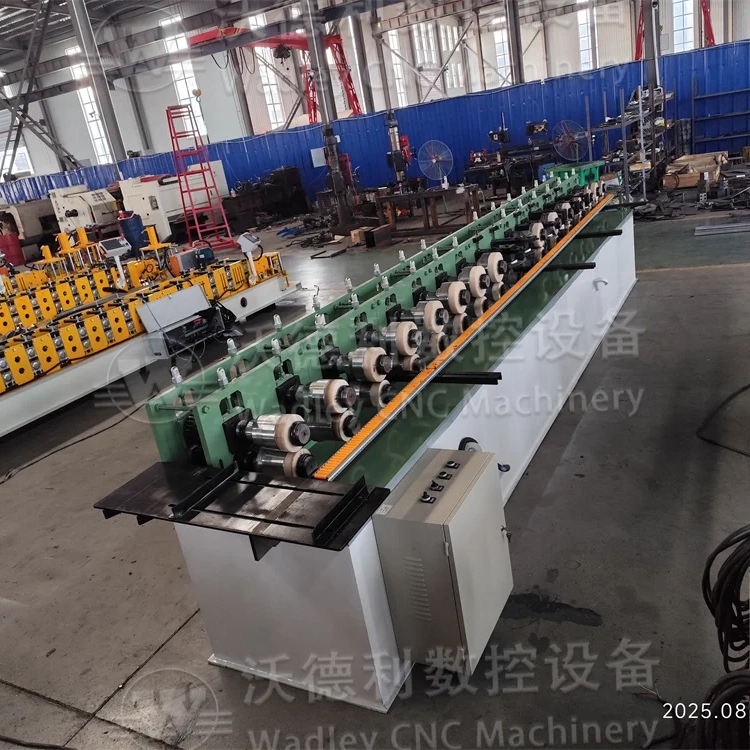

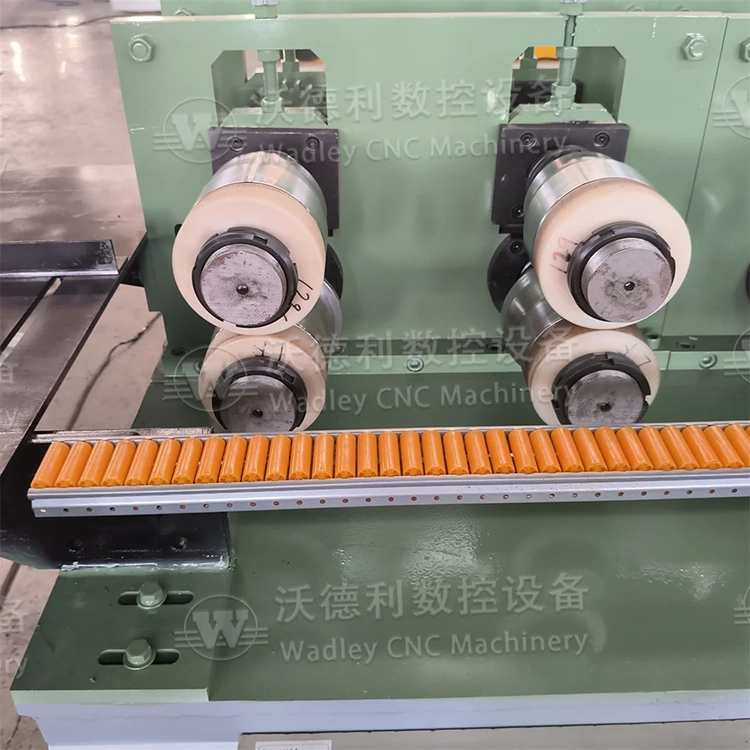

Single Side Door Frame Roll Forming Machine
Door frame roll forming machines are specially designed to produce steel window or door frames that are strong and durable.Our door profile roll forming machines are made up of a hydraulic de-coiler with a breaking unit, leveller, servo roll feeder,online multi station hydraulic punching equipment, rollformer with tooling, hydraulic cut-off, run out table or an automatic stacker.
Description
Single Side Door Frame Roll Forming Machine
Door frame roll forming machines are specially designed to produce steel window or door frames that are strong and durable.Our door profile roll forming machines are made up of a hydraulic de-coiler with a breaking unit, leveller, servo roll feeder,online multi station hydraulic punching equipment, rollformer with tooling, hydraulic cut-off, run out table or an automatic stacker.
We can also produce other kinds of Aluminum steel door frame making machines, any request, welcome inquiry, we will design the machine according to custom request.
Product Details
- 1 We can make and design will kinds of roll forming machine according to customer’s request.
- 2 Our own Updated design Running is steady and reliable,endurable maintenance free.
- 3 Full automatic-save labors.

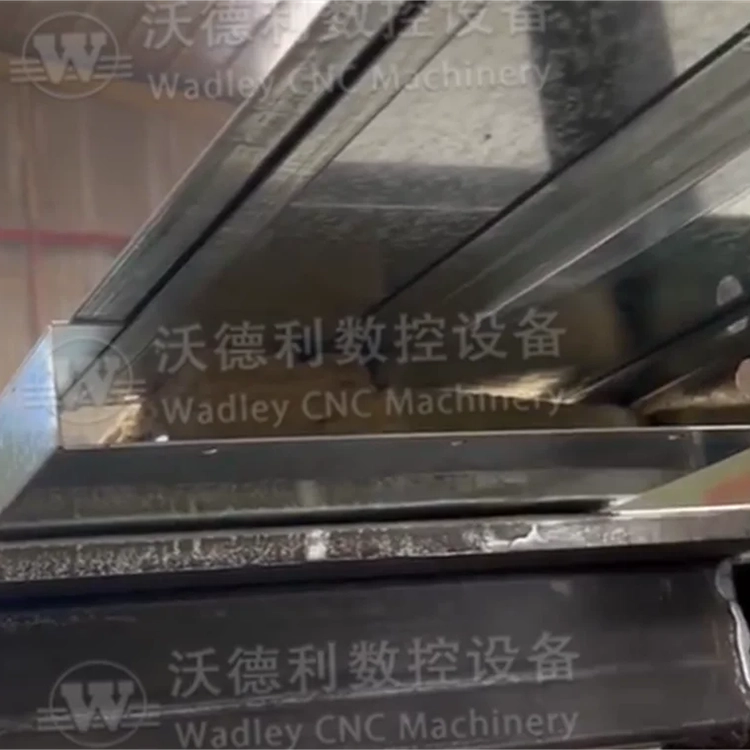

- 4 This door and window frame forming machine can achieve one drawing with multiple different sizes，save significant costs for customers.
Parameter
| Formed Material | Galvanized steel, Aluminum | Thickness:0.8-1.5mm |
| Decoiler | Hydraulic decoiler | Manual decoiler(will give you as free) |

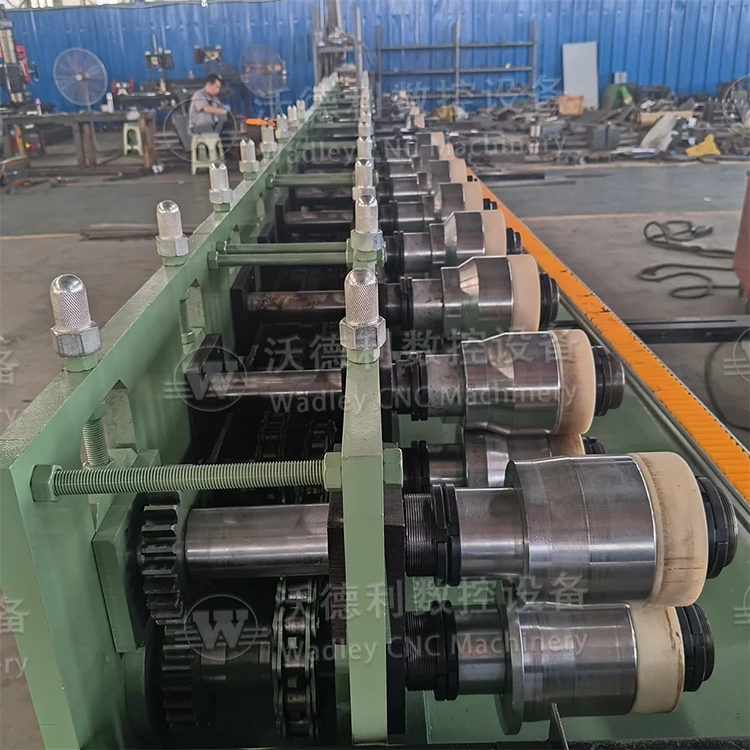

| Main body | Roller station | 16 rows(As your requirement) |
| Diameter of shaft | 70mm solid shaft | |
| Material of rollers | Cr12, hard chrome plated on the surface | |
| Machine body frame | 80 * 80 square tube, square box frame | |
| Drive | one Chain transmission | |
| Dimension(L*W*H) | 6300*1300*1300mm | |
| Weight | 4.35T | |
| Cutter | Automatic | cr12mov material, no scratches, no deformation |
| Power | Main Power | 7.5kw |
| Voltage | 380V 50Hz 3Phase | As your requirement |

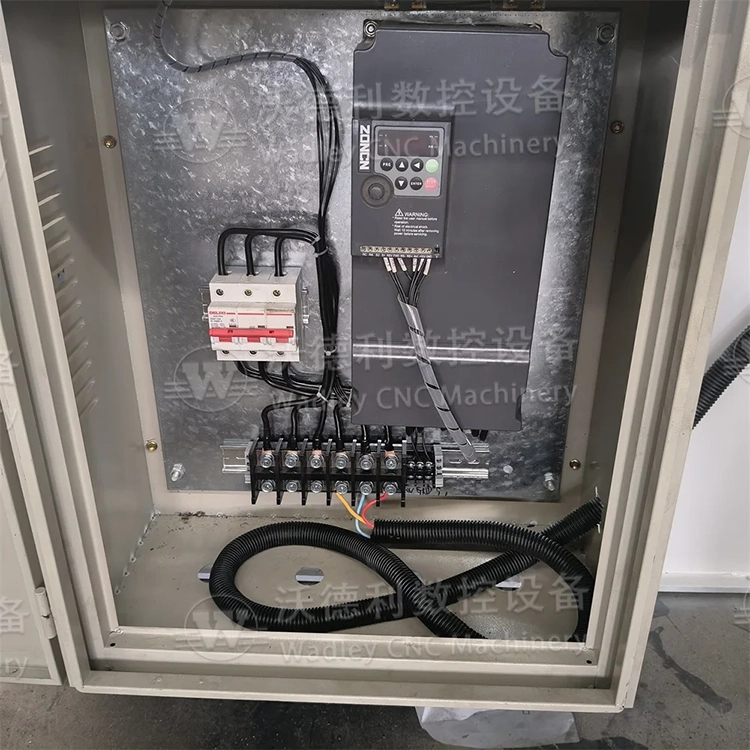

| Control system | Electric Box | Customized(famous brand) |
| Language | English(Support multiple languages) | |
| Forming Speed | 12-18m / min | The speed depends on the shape of the tile and the thickness of the material. |
